ELING 85mm Universal GPS Speedometer Gauge

ELING 85mm Universal GPS Speedometer Gauge – 4G-Era High-Precision Odometer with 8-Color Backlight & IP67 Waterproofing

🏍️ 🚗 ⚓ The Rugged, High-Precision Dashboard Upgrade That Does It All

Meet the ELING 85mm Universal GPS Speedometer Gauge (Model 912)—a feature-packed, marine-grade instrument engineered for cars, trucks, motorcycles, and off-road vehicles.

Combining an ultra-sensitive satellite GPS sensor with an advanced stepper motor drive and an interchangeable 8-color backlight system, this dashboard gauge displays real-time speed, direction, and total distance traveled without requiring a mechanical transmission sensor. With its curved anti-fogging glass and ultra-wide voltage architecture, it goes far beyond standard factory gauges to deliver a true plug-and-play tracking display for any cockpit or bridge.

satellite-driven Speed Tracking & Smart LCD Data Window

• Direct Satellite Signal Input: Computes velocity directly from the included external GPS speed sensor, ensuring high precision, quick location confirmation, and short startup times.

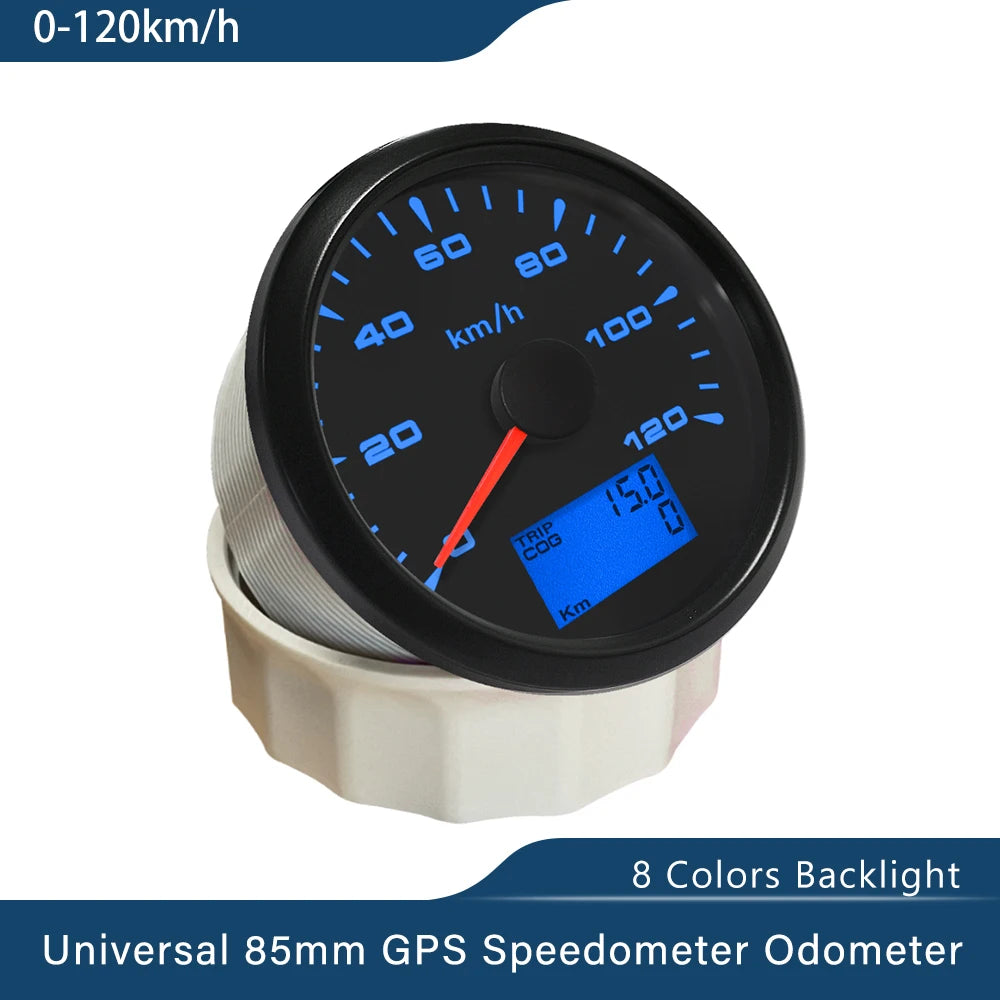

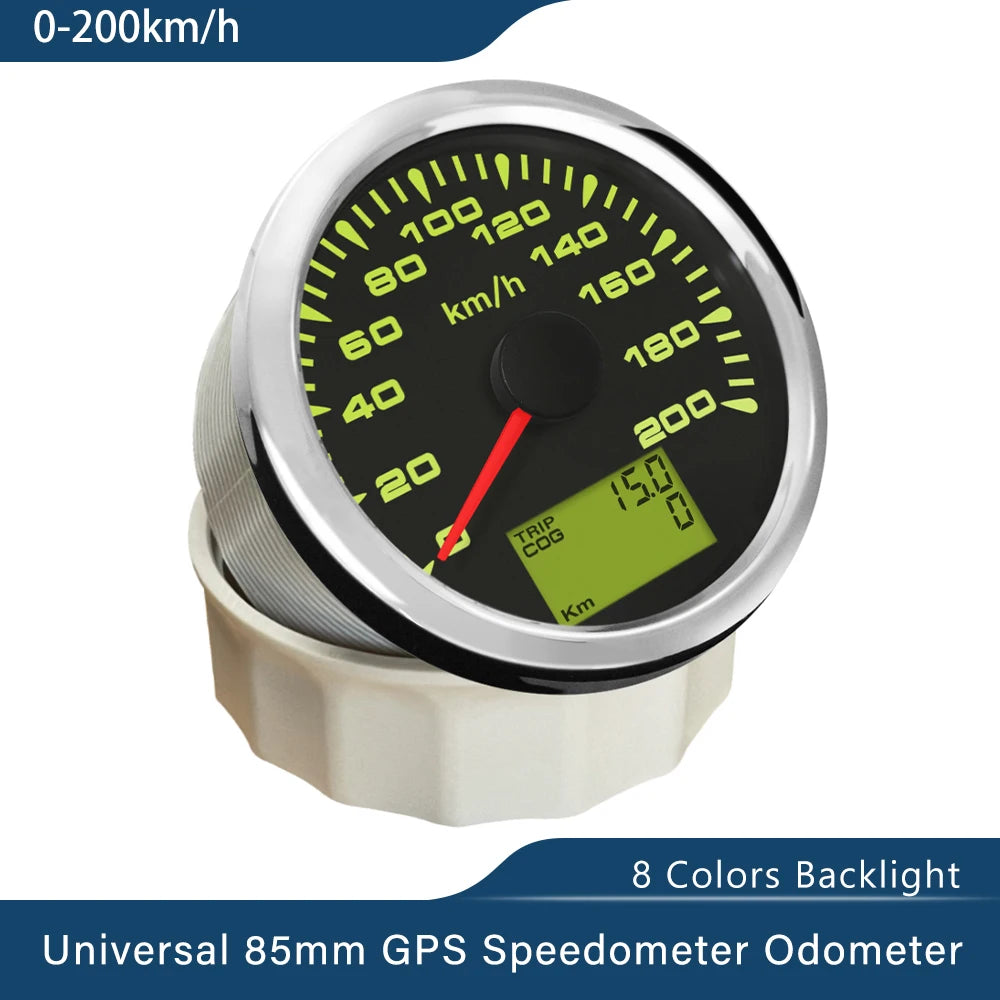

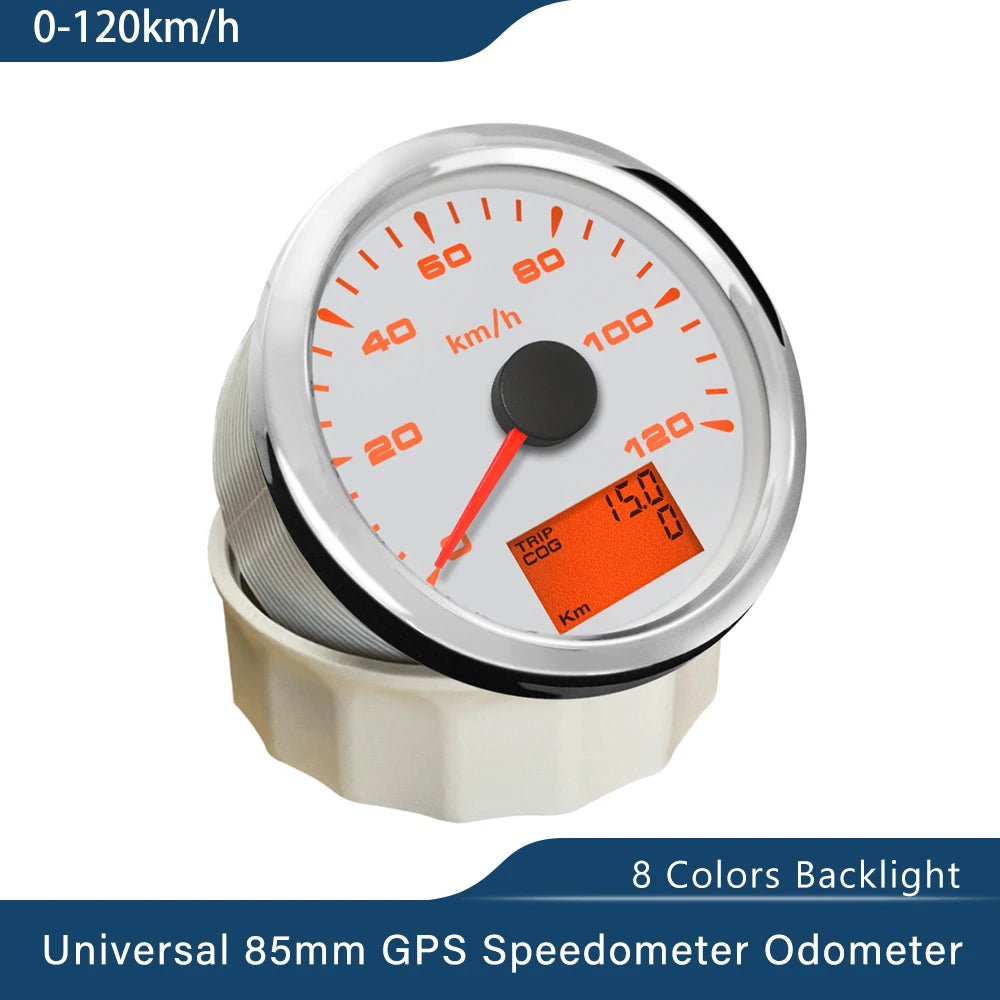

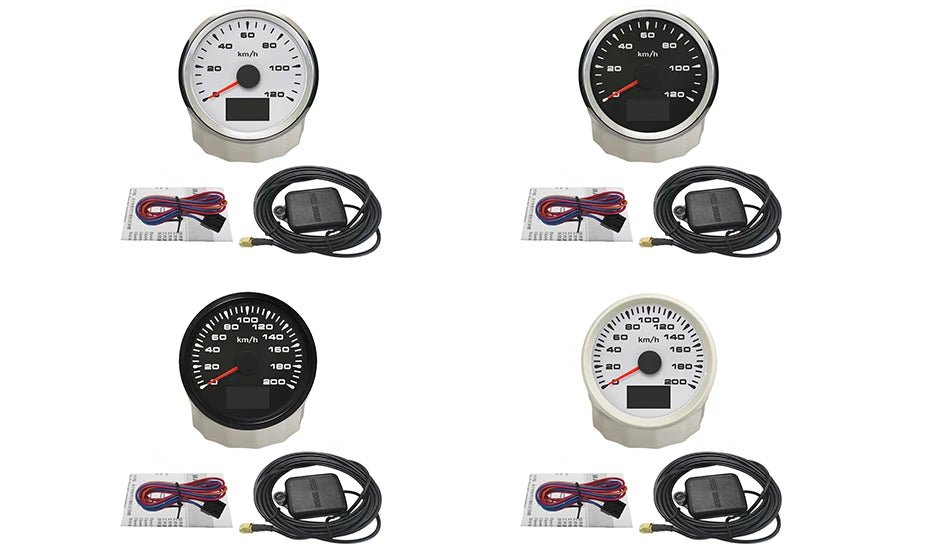

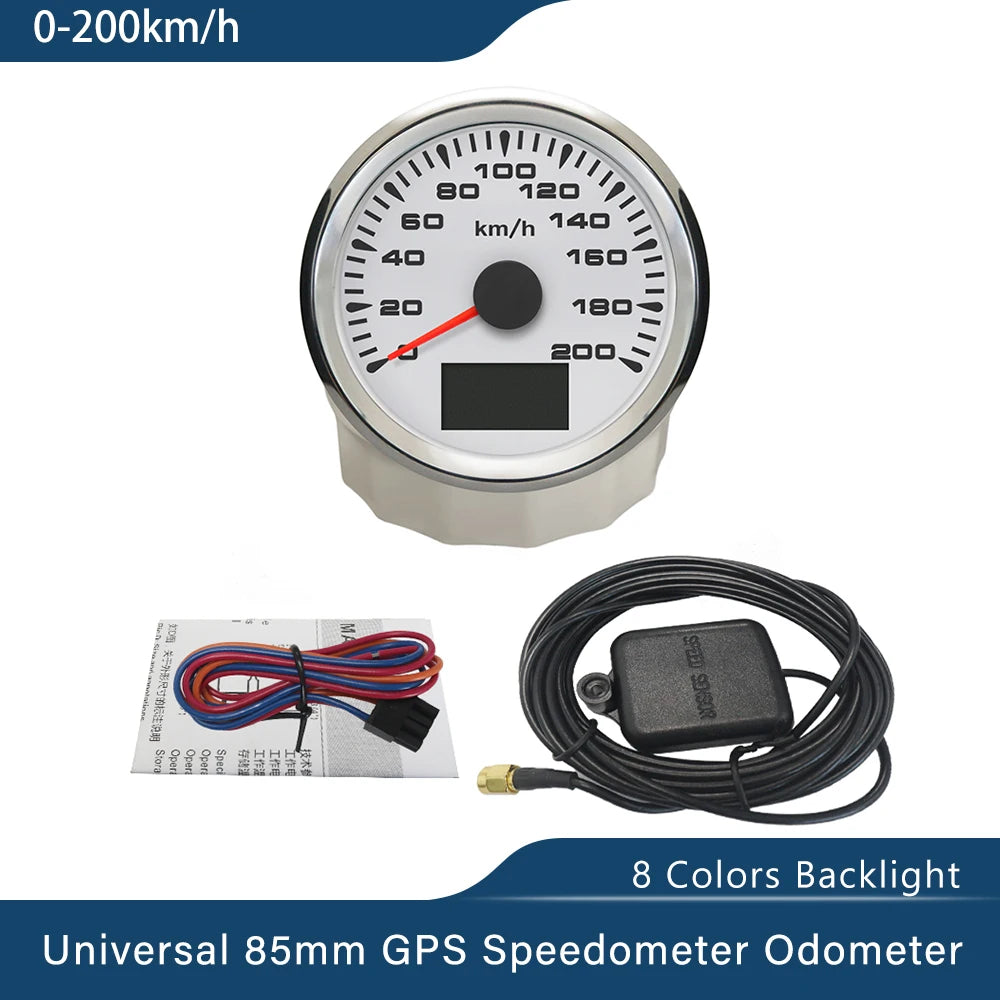

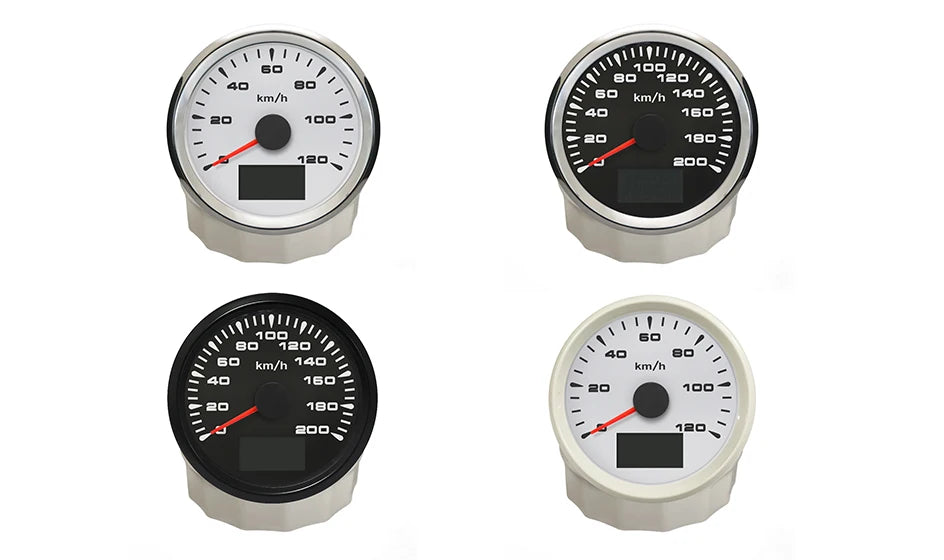

• Versatile Speed Ranges: Available in dual face configurations spanning either a 0–120 KM/H or a high-velocity 0–200 KM/H readout. (Please choose the correct option for your vehicle when ordering).

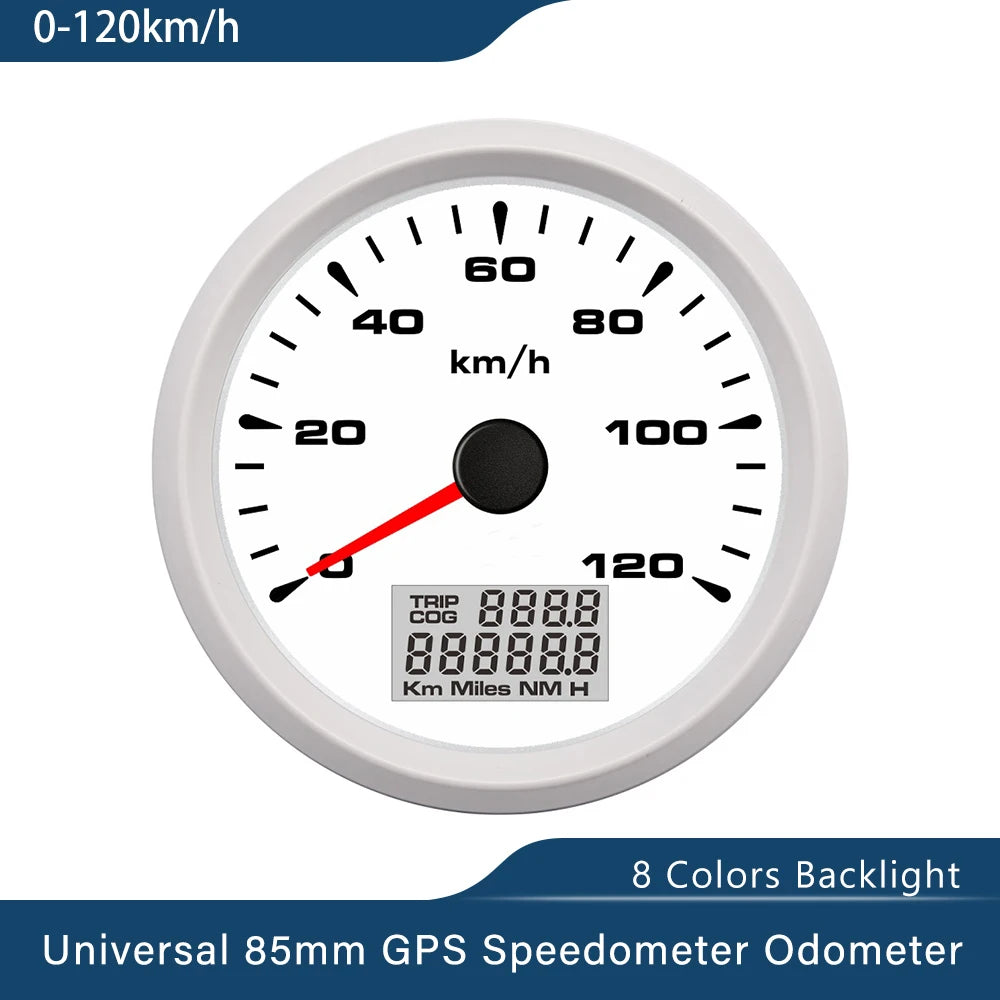

• Multi-Functional LCD Window: Built-in digital display toggles between key voyage diagnostics:

  • TRIP 01 (Default): Tracks single-trip mileage; automatically resets back to 0 when the vehicle powers off.

  • TRIP 02: Accumulates single-trip mileage even after power-off; can be manually cleared by pressing the "Set" button for 3–5 seconds.

  • COG (Course Over Ground): Displays your exact live moving direction.

  • ODO (Odometer): Automatically records total lifetime mileage and cannot be reset.

🎨 8-Color Multi-Backlight & Stepper Motor Precision

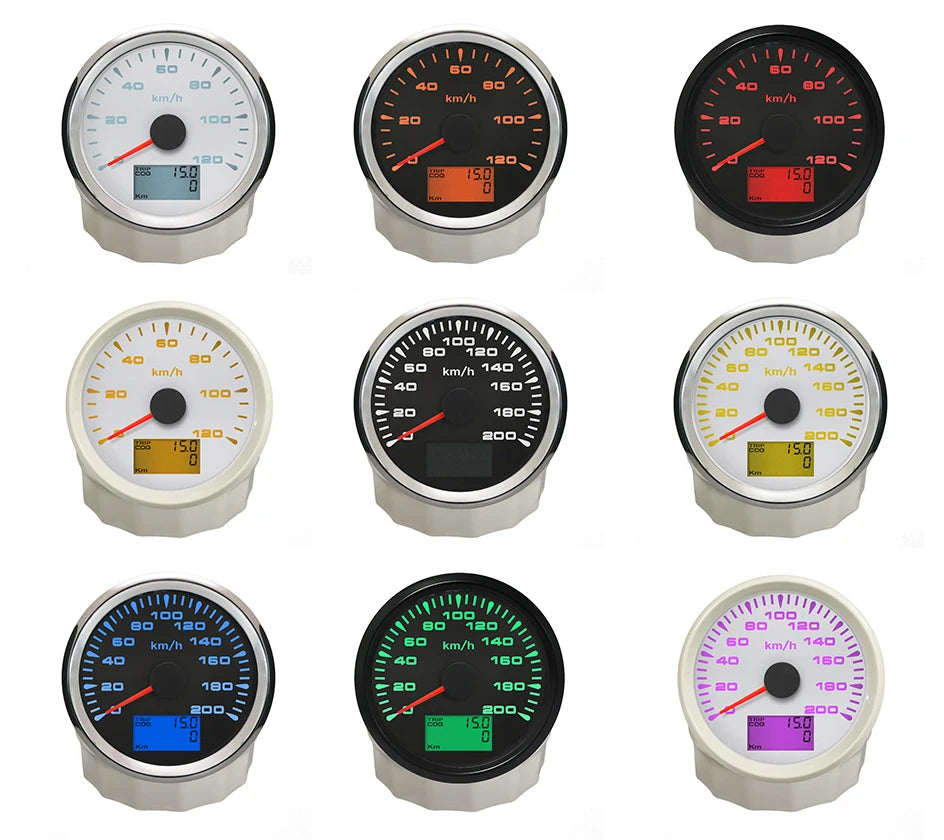

• Interchangeable Backlighting: Personalize your dashboard on the fly. Features 8 vibrant backlight colors (Red, Green, Blue, White, Yellow, Orange, Purple, and Light Green) easily switchable with the press of a button.

• Advanced Stepper Motor Core: Utilizes professional-grade stepper motors across the dial range, ensuring minimal power consumption ($\le 100\text{mA}$ working current), extreme precision, and a longer operational life.

• High-Contrast Interface: An analog needle sweeps smoothly over the digital LCD screen, making it easy to scan in any lighting condition.

🔋 9–32V Wide Voltage Design & All-Weather Armor

• Universal Voltage Grid: Designed to work flawlessly on both 12V and 24V electrical systems with a long-term operating voltage of 9–32V, and maximum surge protection up to 36V ($\le 1\text{ minute}$).

• IP67 Waterproof & Dustproof: Certified to withstand heavy downpours, dusty trails, and direct dashboard splashes.

• Curved Anti-Fog Glass: Features a premium curved glass face with integrated anti-fogging technology to prevent condensation during quick temperature drops.

• Extreme Climate Resilience: Engineered to function reliably in harsh conditions, boasting an operating temperature scale of -30℃ to +75℃.

⚙️ Product Specifications

• Brand Name: ELING

• Manufacturer Part Number: 912

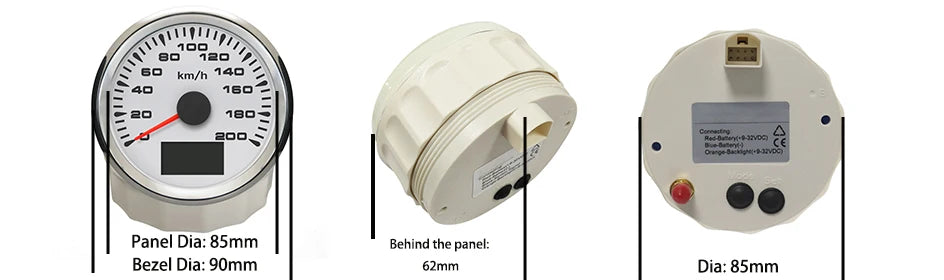

• Fixing / Mounting Dimension: 85mm (3-3/8")

• Physical Proportions: 85mm Height × 85mm Length × 85mm Width

• Item Weight: 0.5 KG

• Indicating Range Options: 0–120 KM/H or 0–200 KM/H

• Operation Mode: Analog Needle (Stepper Motor) + LCD Digital Window

• Working Current: $\le 100\text{mA}$

• Voltage Architecture: 9–32V DC (Maximum 36V survival spike)

• Backlight Layout: 8 Colors Available

• Environmental Limits: Operating: -30℃ to +75℃ | Storage: -40℃ to +85℃

• Placement on Vehicle: Front Dashboard Panel

• Country/Region of Manufacture: China

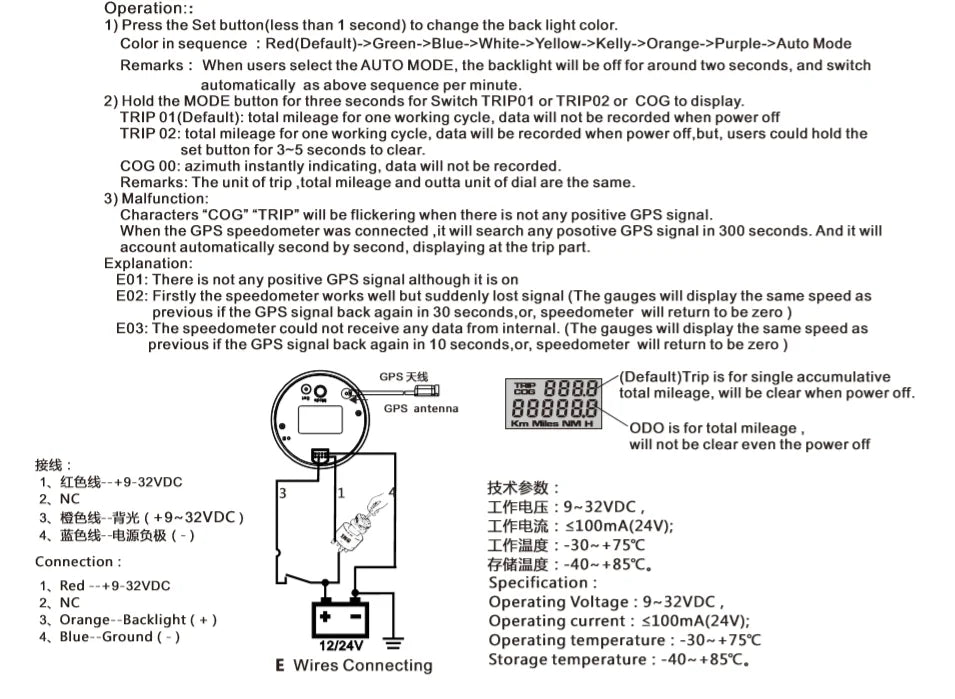

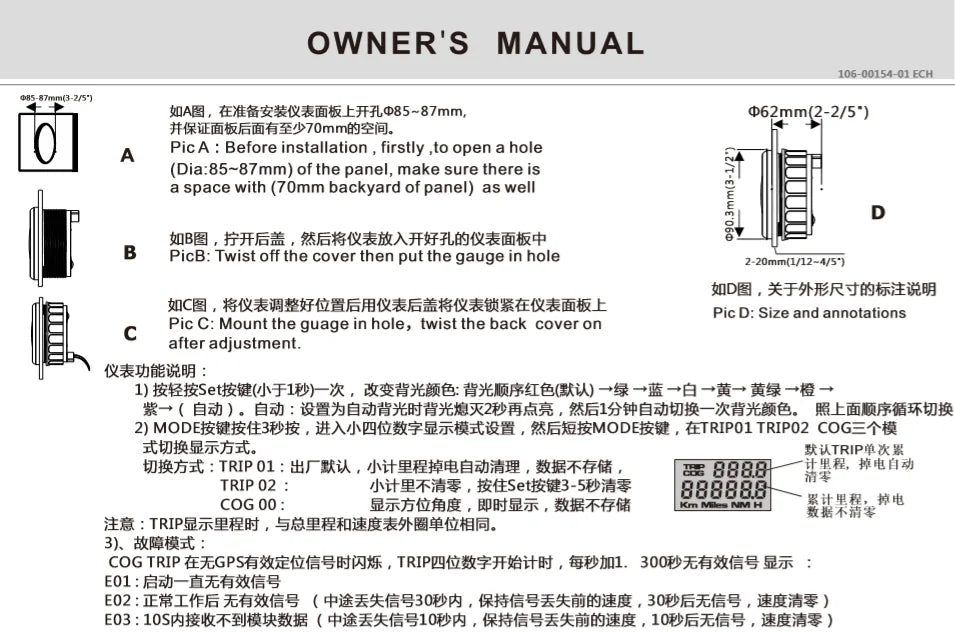

🛠️ Critical Installation Guidance & Wire Routine

⚠️ IMPORTANT INSTALLATION RULE: To protect the internal electronics, buyers must physically connect the black GPS Antenna/sensor first, and then connect the main power lines. Do not connect the power cable before the antenna, as doing so can easily cause permanent damage to the internal GPS mold.

1. Prepare the Panel: Create a standard 85mm (3-3/8") circular mounting hole through your vehicle or boat dashboard.

2. Antenna Setup: Mount the external active GPS speed sensor securely with an unobstructed view of the open sky. Route its cable to the back of the dash and plug it into the gauge first.

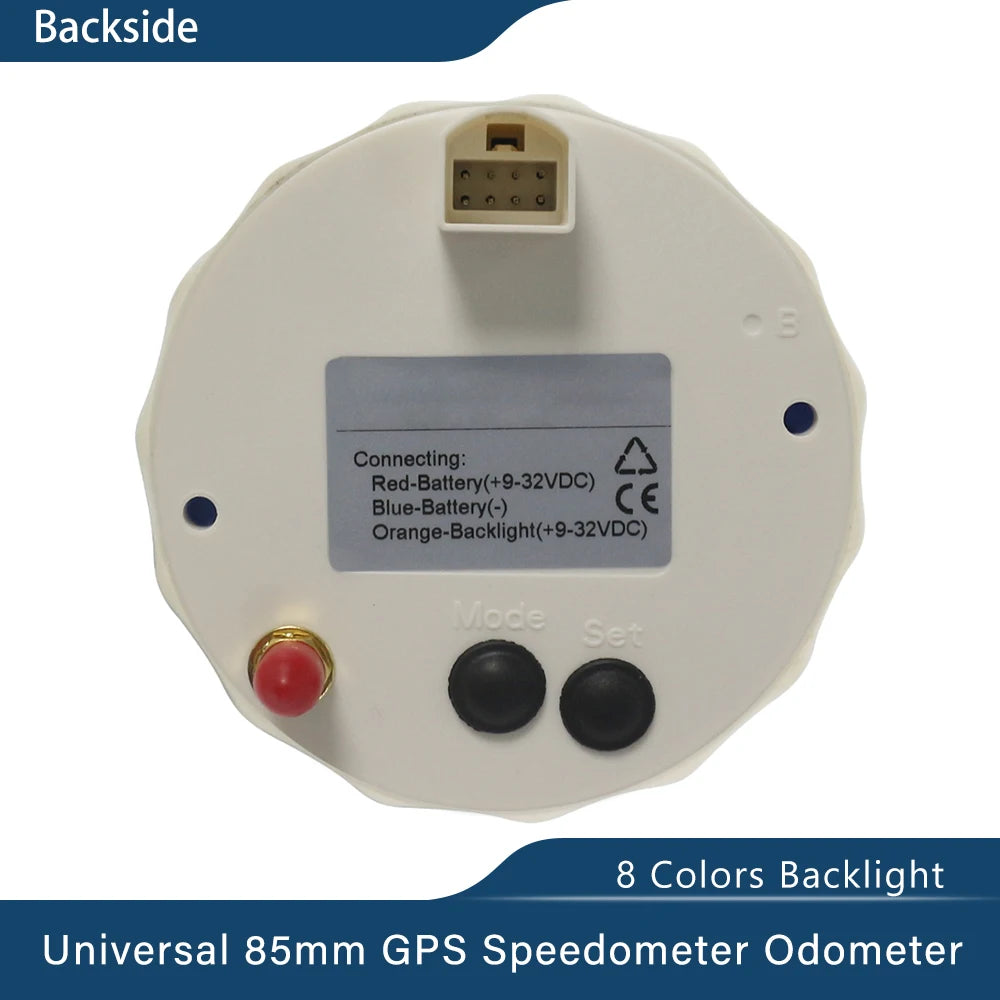

3. Power Harness Integration: Insert the Multi-Plug Socket into the gauge and connect your power leads (9–32V) to complete the circuit. Secure the unit firmly from behind using the integrated locking nut.

📦 What’s Included

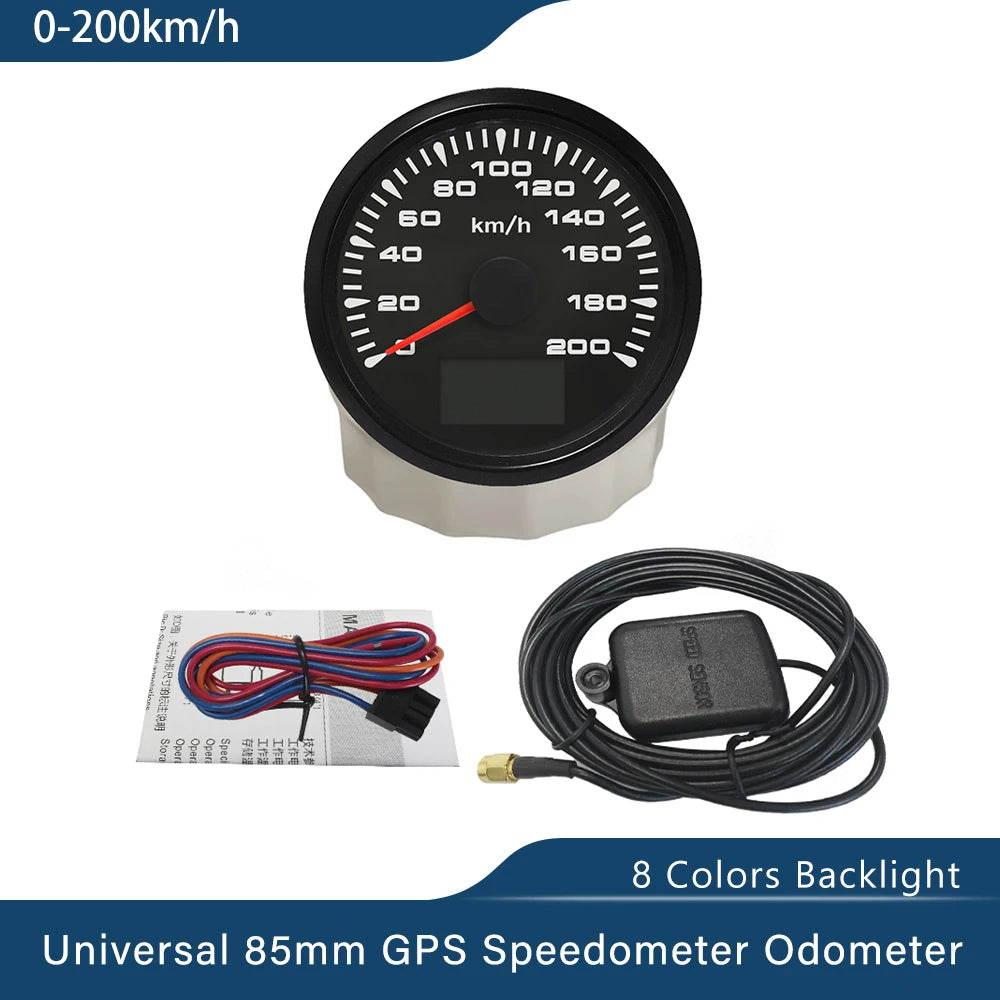

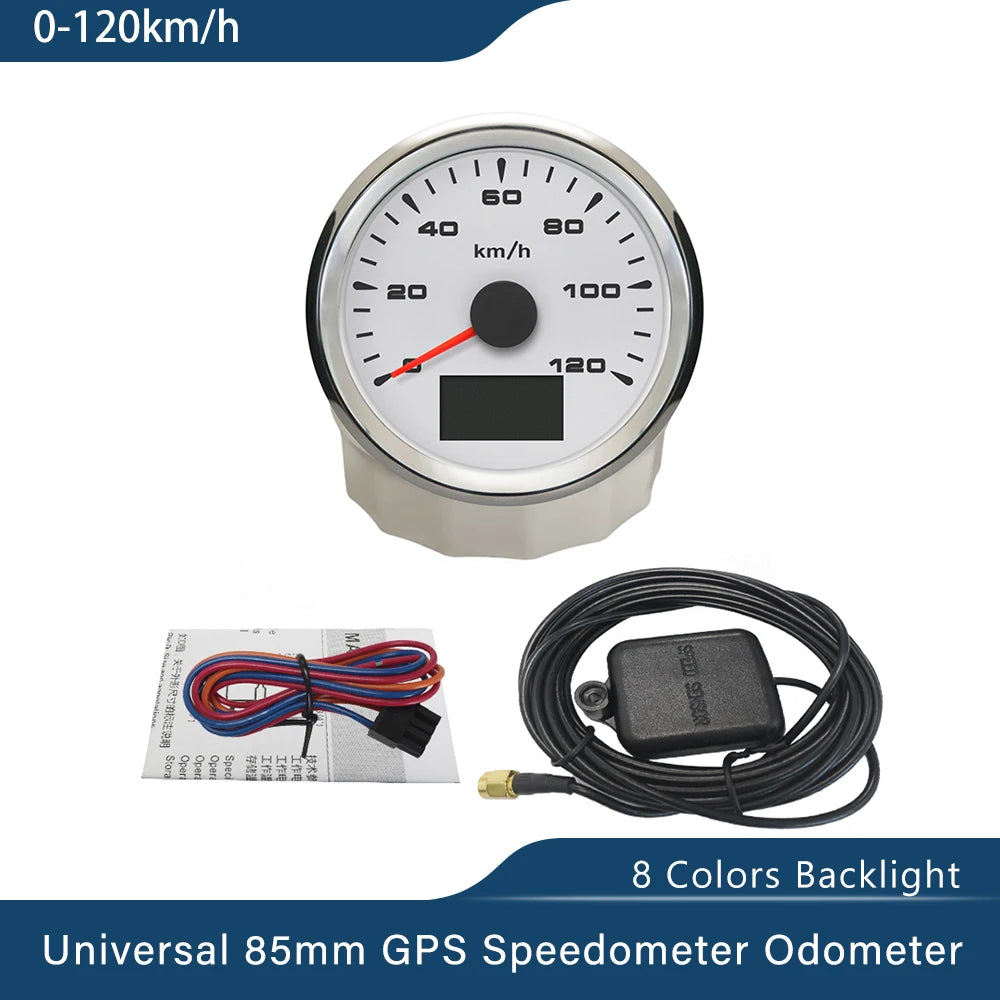

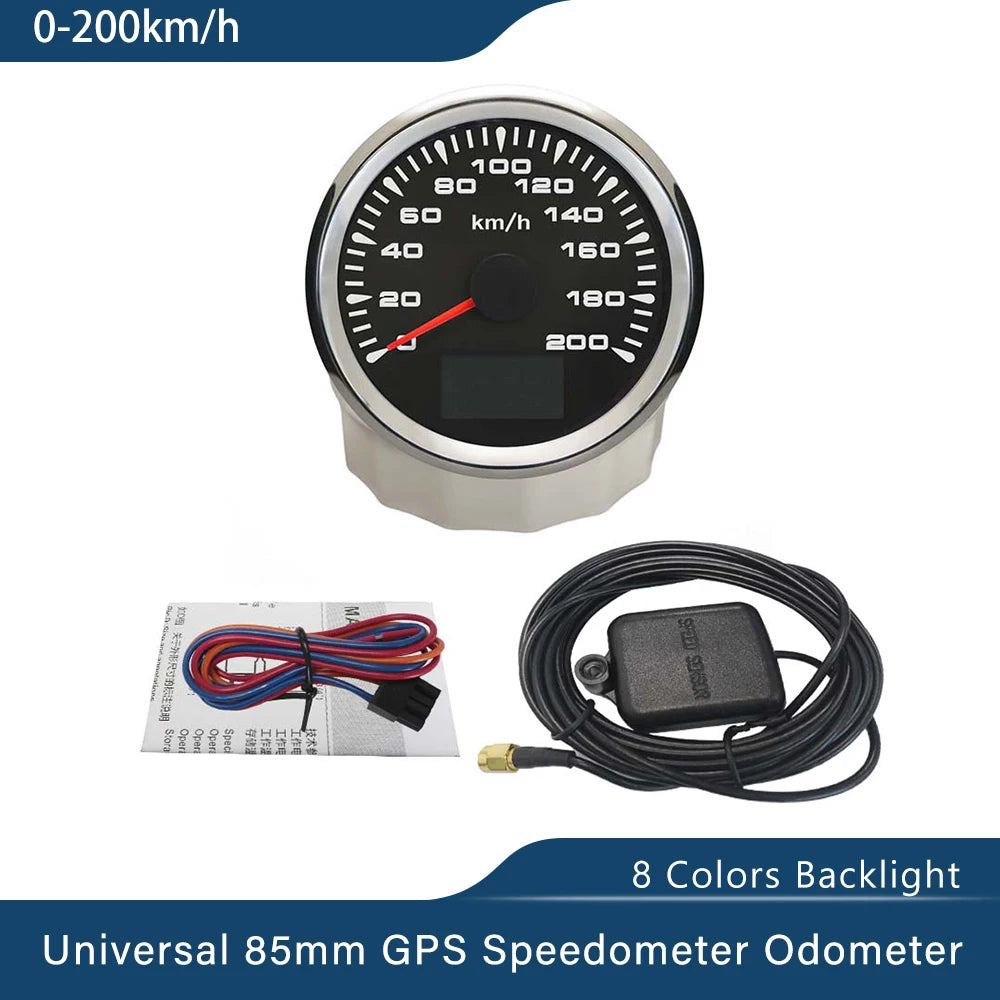

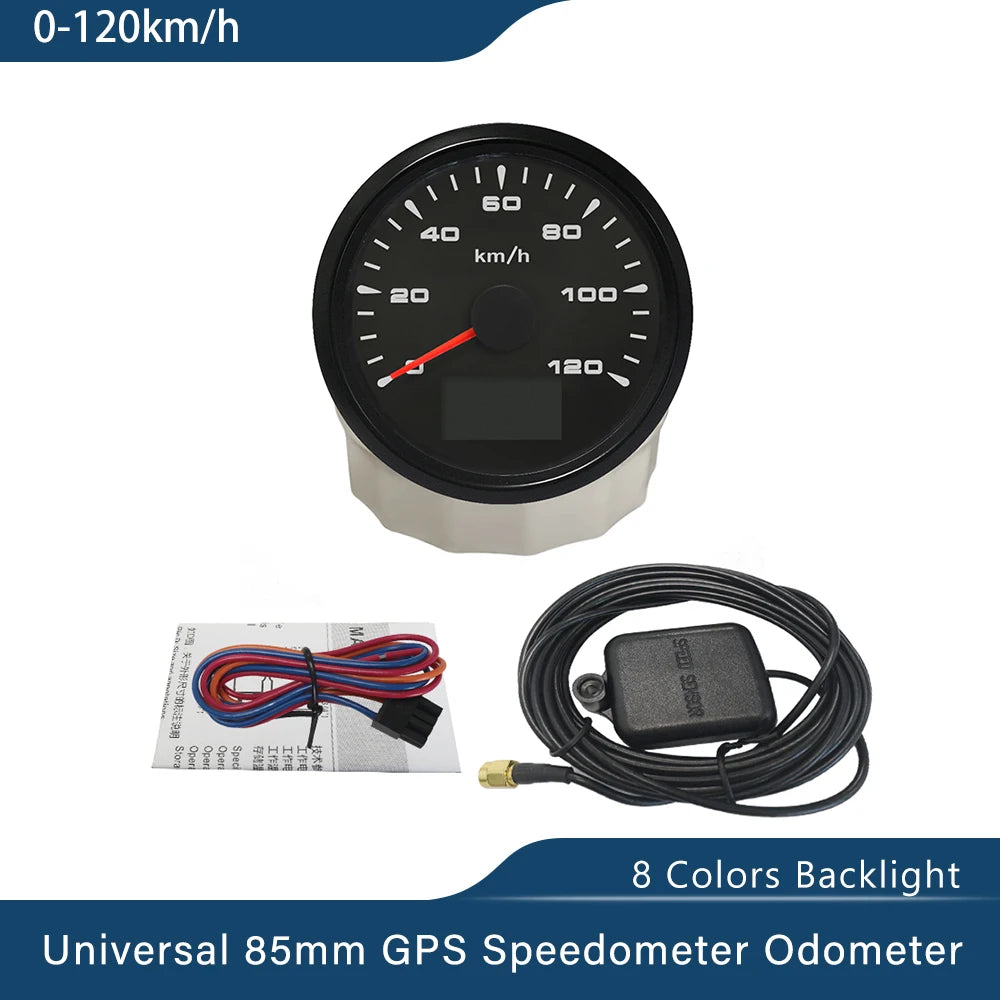

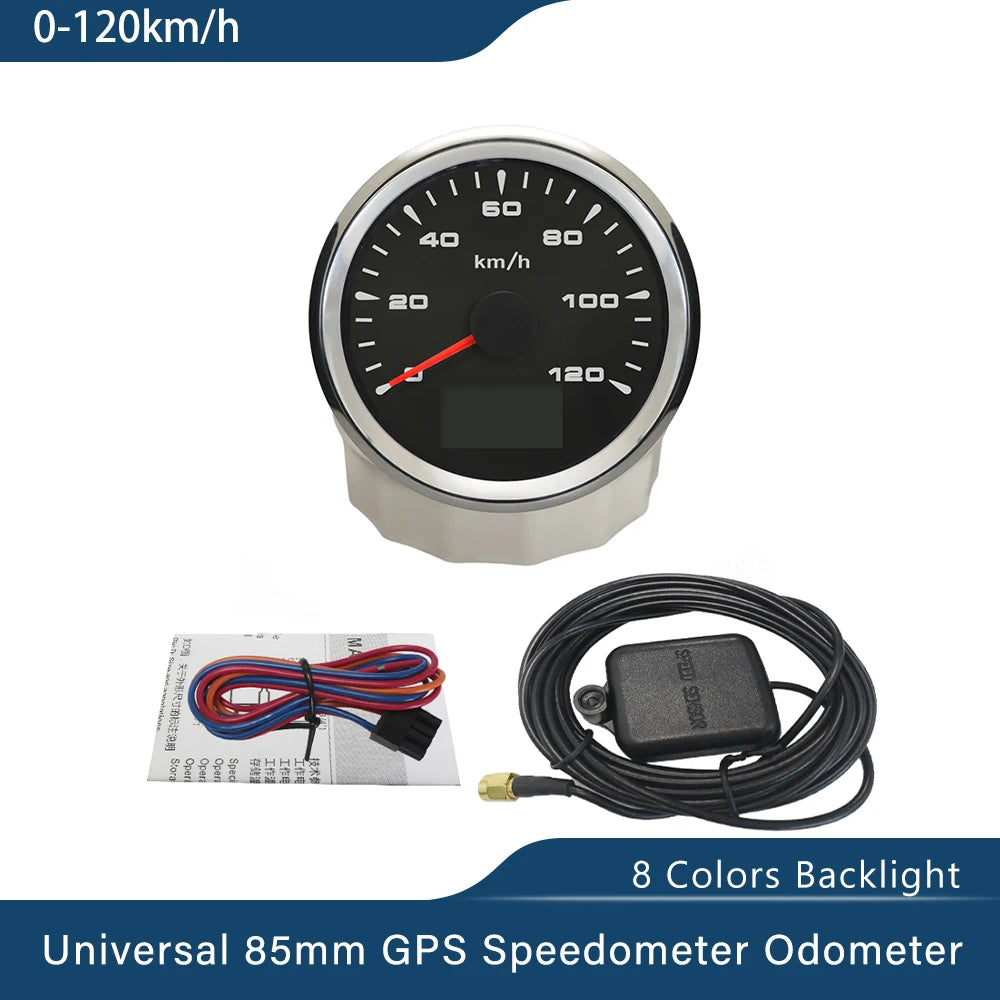

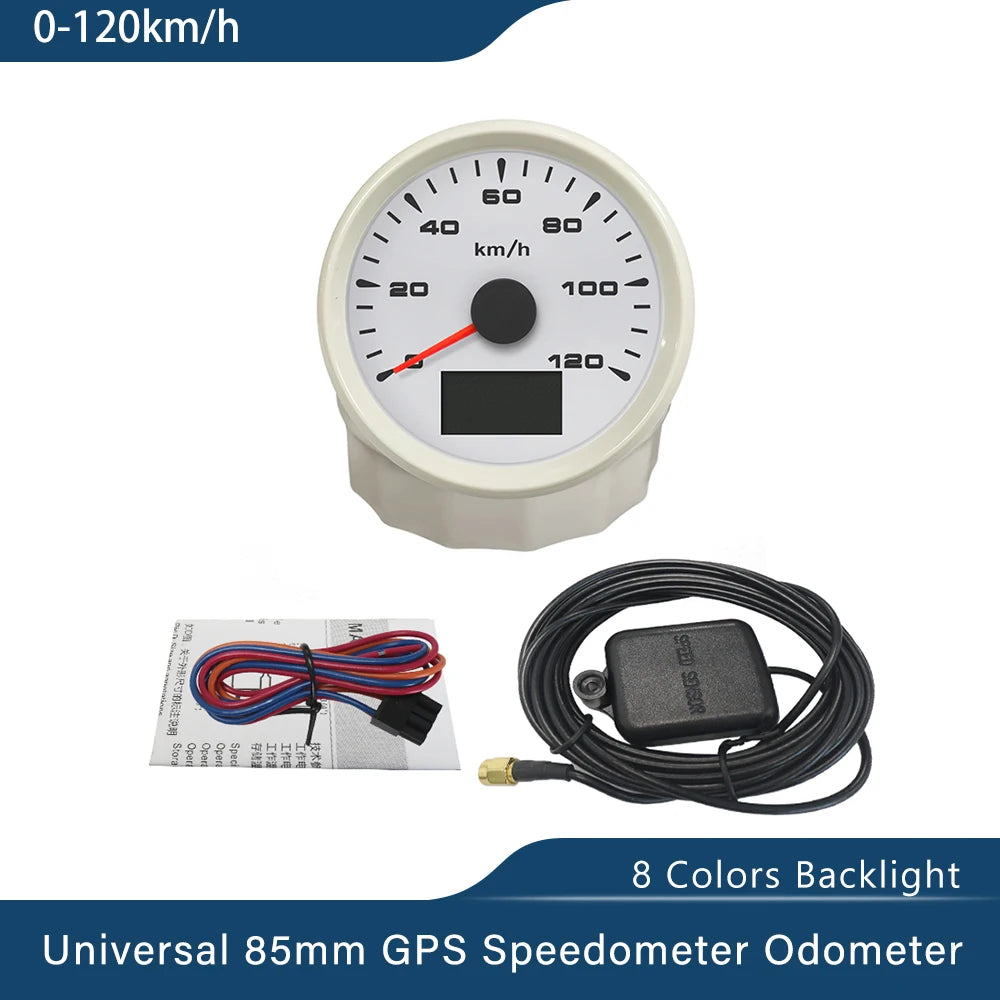

• 1 × ELING 85mm GPS Speedometer Gauge

• 1 × High-Gain GPS Antenna / Speed Sensor

• 1 × Multi-Plug Connection Socket Harness

• 1 × Step-by-Step Installation Instruction Manual

🛒 Complete Precision Tracking. Any Vehicle. Any Trail.

The ELING 85mm Universal GPS Speedometer is perfect for boat builders updating helm panels, custom car enthusiasts building classic hot rods, motorcycle riders avoiding messy mechanical speed cables, and commercial truck operators demanding zero-lag tracking accuracy.
