YTYIN / SAIYANG GN9000 Marine GNSS Navigator

YTYIN / SAIYANG GN9000 Marine GNSS Navigator – 7" HD Multi-Star Satellite System for Ships & Sea Boats

⚓ The Ultimate Deep-Sea Command Station That Does It All

Meet the GN9000 Marine GNSS Navigator (Model GP9000 / GP190)—a feature-packed, high-precision electronic navigation console engineered for deep-sea fishing vessels, cargo ships, and commercial marine boats.

Powered by an advanced multi-star satellite tracking core, a crisp 7-inch high-definition color display, and smooth speed filtering technology, this rugged marine navigator connects flawlessly with your existing bridge gear. It goes far beyond standard consumer electronics to deliver a true all-in-one vessel tracking and motion telemetry hub for the open ocean.

🛰️ Multi-Star Global Positioning & Advanced Data Filtering

• Simultaneous Multi-Star Reception: Tracks coordinates using GPS, Glonass, Galileo, and Beidou (BDS) satellite networks simultaneously, delivering faster orientation speeds and highly accurate positioning fixes.

• Smooth Heading Filtering Technology: Uses advanced speed and heading filters to eliminate jitter and display smooth ship motion data.

• Multi-Way NMEA0183 & AIS Outputs: Distributes highly precise navigation and automated AIS (VDM) data streams out to your onboard radar, chart plotters, autoclip autopilots, fish finders, and sonar systems.

📺 7-Inch HD Color Display & Flexible Mounting Options

• High-Definition Screen Resolution: Features a bright, color-rich 7-inch matrix screen outputting an $800 \times 600\text{px}$ resolution layout for crisp map and chart scanning.

• Versatile Display Modes: Supports multiple interactive, intuitive display styles to read tracking coordinates, satellite signal strength, and trip logs on the fly.

• Dual Installation Layouts: Designed to fit perfectly with any boat bridge design, supporting standard exterior Bracket Mounting or space-saving dash Flush Mounting.

• SD Card Expansion Port: Features a built-in SD card reader to easily apply over-the-air software updates, refresh local maritime charts, and import/export route waypoints.

🔋 Stable DC 24V Marine Power & Industrial Construction

• Wide-Voltage Power Matrix: Built for standard commercial ship grids, accepting a steady DC 24V input with a safe operational range spanning from 11V to 35V.

• Saltwater & Salinity Immunity: Engineered to work reliably without performance degradation from fluctuating ocean water temperatures or ambient sea salinity.

• Ruggedized Enclosure Design: Wrapped in a high-grade, durable plastic housing engineered to withstand harsh offshore environments.

⚙️ Product Specifications

• Brand Name: YTYIN / SAIYANG

• Product Model: GN9000 Marine Navigator (GP9000 / GP190 Performance Edition)

• Primary Utility: Marine GPS / GBS GNSS Navigator Station

• Screen Properties: 7-Inch HD Color Display Interface

• Display Resolution: $800 \times 600\text{px}$ Matrix

• Chassis Material: Heavy-Duty Protective Marine Plastic

• Satellite Tracking Frequencies:

  • BDS (Beidou): B1I (1561.098MHz)

  • GPS: L1 (1575.42MHz)

  • Glonass: G1 (1602.916MHz)

• Receiver Tracking Sensitivity: Acquisition: -130dBm to -120dBm | Tracking: -133dBm

• Positioning Accuracy Scale: Horizontal: 25m (95%) | Vertical: 30m (95%)

• Data Output Framework: Multi-way NMEA0183 & AIS (VDM) Streams

• Compass Safe Clearance Distance: Antenna: 55cm | Data Display Unit: 45cm

• Enclosure Protection Grades: Antenna Unit: IP56 (Weatherproof) | Display Core: IP20

• Power Supply Framework: DC 24V Operating Input (Supports 11V to 35V Fluctuations)

• Origin: Mainland China (Jiangsu Province)

📦 What’s Included

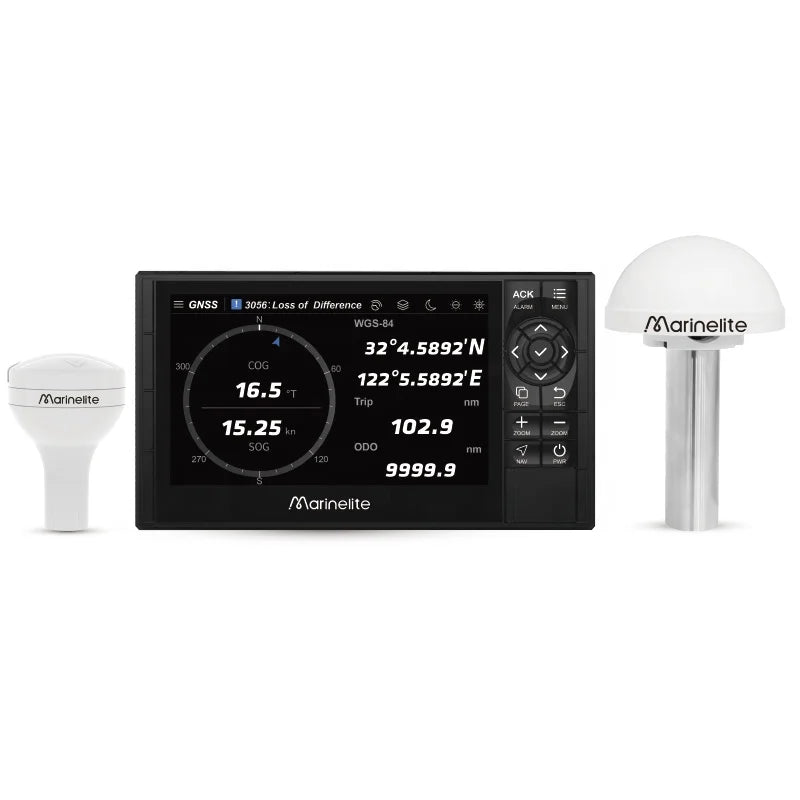

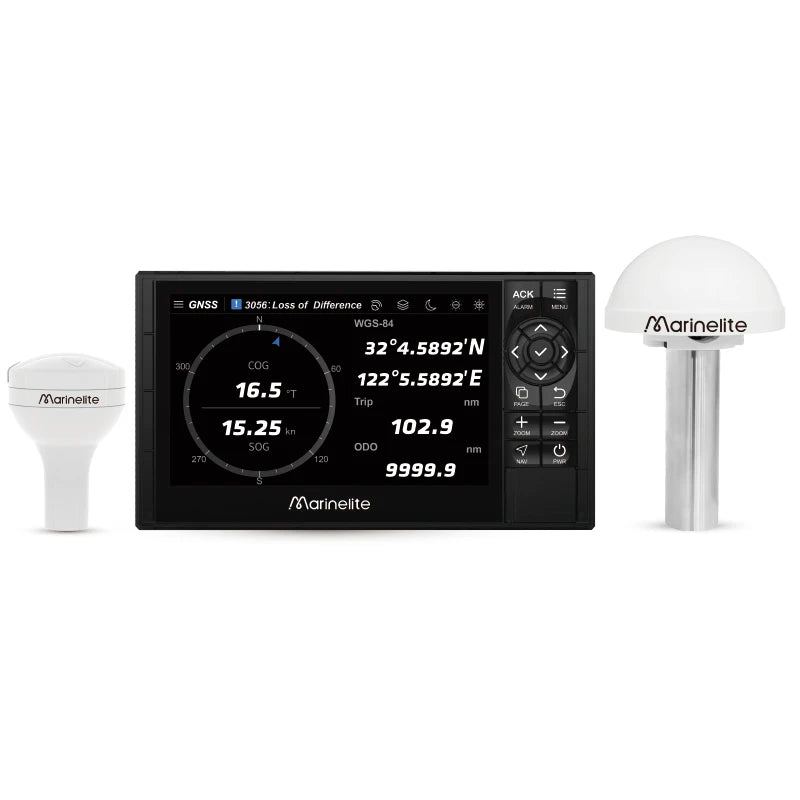

• 1 × GN9000 Marine GNSS Navigator Core Display Unit

• 1 × High-Gain Multi-Star Satellite Antenna Receiver Pod

• 1 × Heavy-Duty Adjustable Desktop Surface Mounting Bracket

• 1 × Premium Flush Mounting Gasket Hardware Kit

• 1 × Protected DC Power Input Connection Harness

• 1 × Heavy-Duty Protective Carton Shipping Box

• 1 × Comprehensive Ship Navigation & Calibration Manual

⚠️ Important Operational & Weather Precautions

• Display Moisture Protection: The external satellite antenna unit features robust IP56 weatherproofing to withstand heavy direct ocean spray. However, the main bridge display unit carries an IP20 protection score. Ensure the console is shielded from direct rainstorms, open wind lines, and extreme cabin moisture exposure.

• Compass Interference Warning: To avoid distorting your ship's magnetic compass, maintain a minimum safe clearance distance of 55cm for the antenna module and 45cm for the display unit.

🛒 Professional Open-Sea Navigation. Built for Lower Scores.

The GN9000 Marine GNSS Navigator is perfect for commercial shipping operators navigating coastal channels, fishing boats seeking smooth, lag-free velocity readings, and vessel captains demanding multi-star satellite precision.
