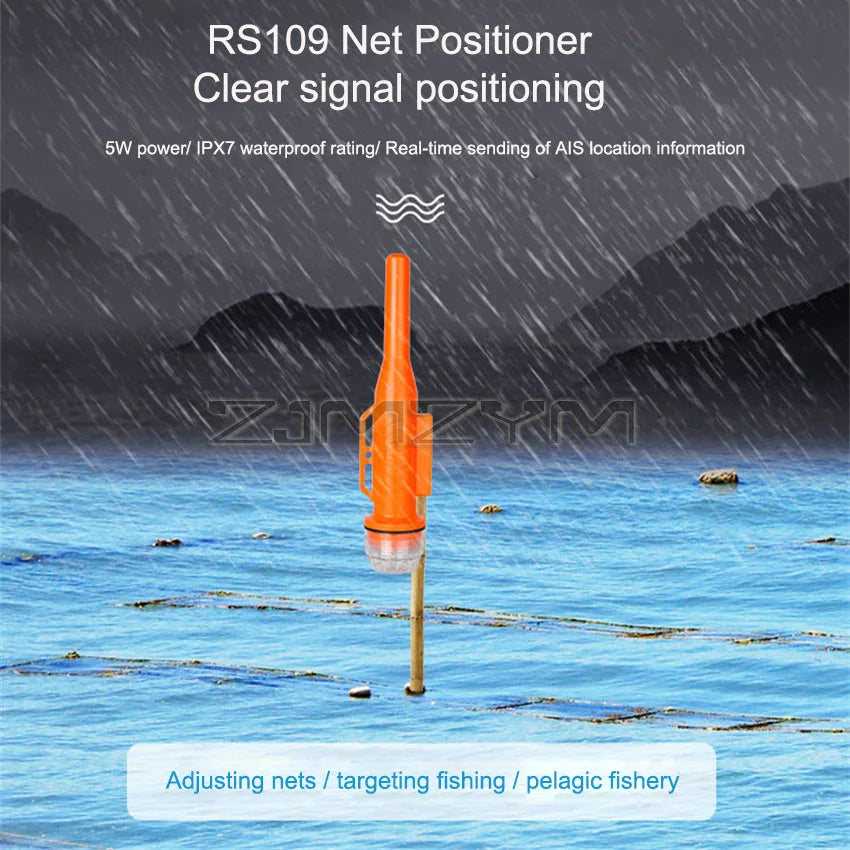

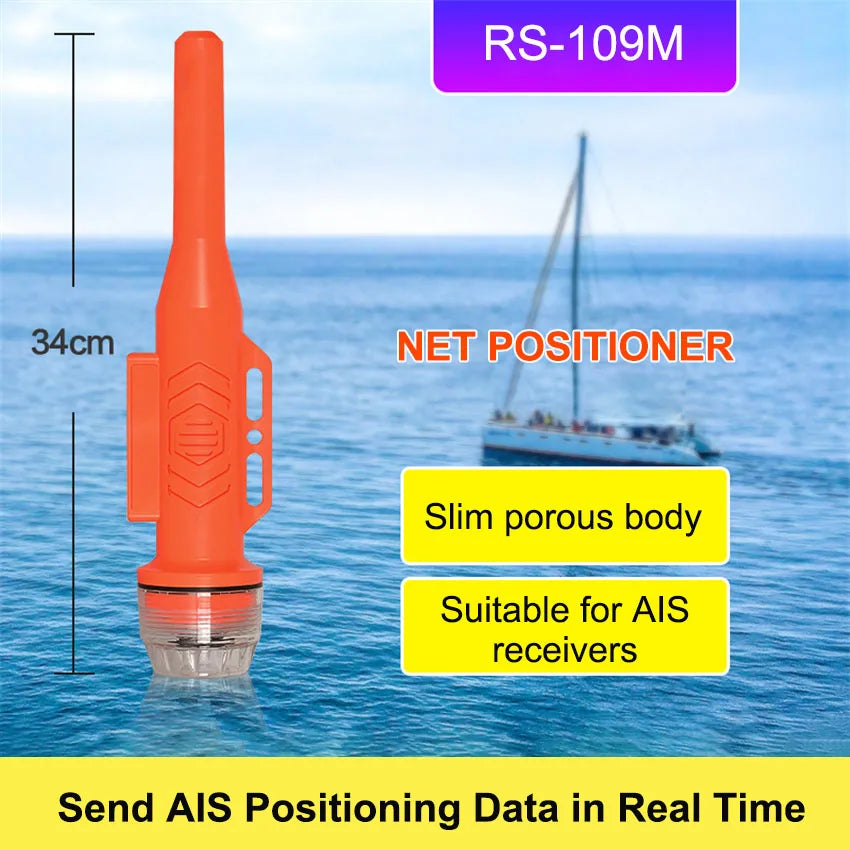

RS-109M Marine AIS Fishing Net Positioning Tracker

RS-109M Marine AIS Fishing Net Positioning Tracker – 5W Transmission Meter with GPS & IPX7 Waterproofing

⚓ The Ultimate Marine Tracking Solution That Does It All

Meet the RS-109M Marine Fishing Net Positioning Tracker (Model QC0724)—a feature-packed, high-performance marine locator engineered explicitly for fishermen, vessel captains, and marine operators who need to secure their gear and monitor asset locations in real time.

Combining professional Automatic Identification System (AIS) data transmission with an ultra-durable IPX7 waterproof chassis and high-capacity battery tracking, this safety beacon transmits exact coordination data straight to your ship's radar or AIS plotter. It goes far beyond basic markers to deliver a true all-in-one anti-lost tracking system for fishing networks and marine assets.

📡 Professional AIS Transmit Processing & Fleet Locating

• Dual-Channel AIS Transmissions: Broadcasts location data over dedicated marine frequencies of 161.975MHz and 162.025MHz, allowing standard shipborne AIS receivers to overlay your gear position cleanly onto electronic maps.

• High-Efficiency GMSK Modulation: Utilizes standard 25KHz GMSK radio frequencies to optimize data packet transmissions while keeping the active transmit current tight at $\le 1.5\text{A}$.

• High-Output 5W Signal Punch: Driven by a robust 5W transmission engine to push tracking telemetry far past common ocean line-of-sight boundaries.

• Extensive Nautical Range Coverage: Delivers a reliable operational communication tracking field spanning roughly 7 Nautical Miles (7nm), keeping long lines and deep-sea net rigs connected.

🗺️ Precision GPS Update Matrix & Long Battery Standby

• Adaptive GPS Coordination Updates: Built-in tracking system can be adjusted to refresh location packets anywhere from 1 to 30 minutes, allowing you to easily fine-tune battery conservation.

• Pre-Configured Timing Layout: Arrives straight from the factory set to a 3-minute position update standard, perfectly matching standard commercial marine asset tracking schedules.

• Massive 3000mAh Battery Reserve: Packed with an energy-efficient 3000mAh rechargeable lithium power cell designed for long deployment.

• 15-Day Standby Field Lifespan: Operates continuously for $\ge 15\text{ days}$ on standard interval modes, saving you from having to constantly pull up your gear just to recharge the tracker.

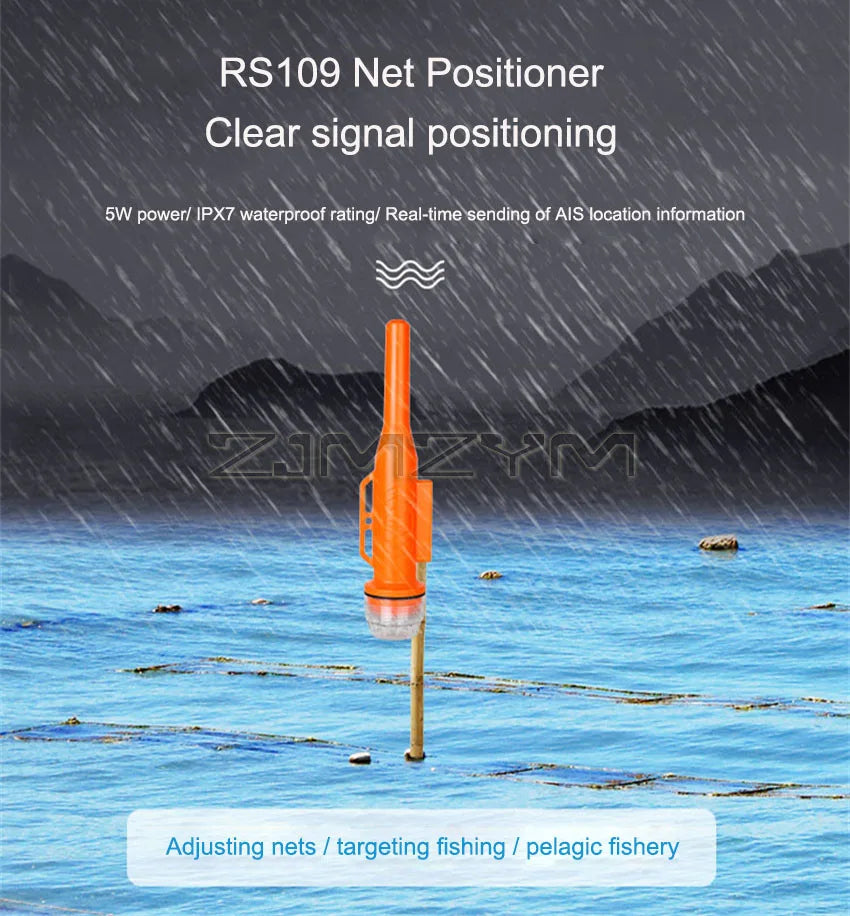

⛈️ IPX7 Waterproofing & Built for the Open Sea

• Certified IPX7 Waterproof Enclosure: Fully sealed design prevents moisture intrusion from heavy saltwater deck spray, torrential downpours, and brief deep submersions under crushing waves.

• Rugged Marine Architecture: Assembled using impact-stabilized composite polymers built to survive freezing weather frames down to -20°C and blistering sun scaling up to +60°C.

• Stable DC7.4V Voltage Grid: Features low internal operating heat generation, maintaining electrical efficiency during long offshore tracking runs.

⚙️ Product Specifications

• Brand Name: NONE / Premium Marine Component OEM

• Product Name: RS-109M Network Level Meter / Fishing Net Location Tracker

• Model Hardware Number: QC0724

• Transmitting Frequencies: 161.975MHz / 162.025MHz

• Signal Frequency Interval: 161.975MHz / 162.025MHz

• Channel Bandwidth: 25KHz

• Radio Modulation Type: 25KHz GMSK

• Output Transmit Power: 5W

• Active Transmit Current: $\le 1.5\text{A}$

• Battery Rated Capacity: 3000mAh

• Standard Operating Voltage: DC7.4V

• Communication Radius: Approximately 7 Nautical Miles (7nm)

• GPS Data Update Scaling: 1 to 30 Minutes (3-Minute Factory Default)

• Continuous Standby Time: $\ge 15\text{ Days}$

• Operating Temperature Limits: -20°C to +60°C

• Origin: Mainland China

📦 What’s Included

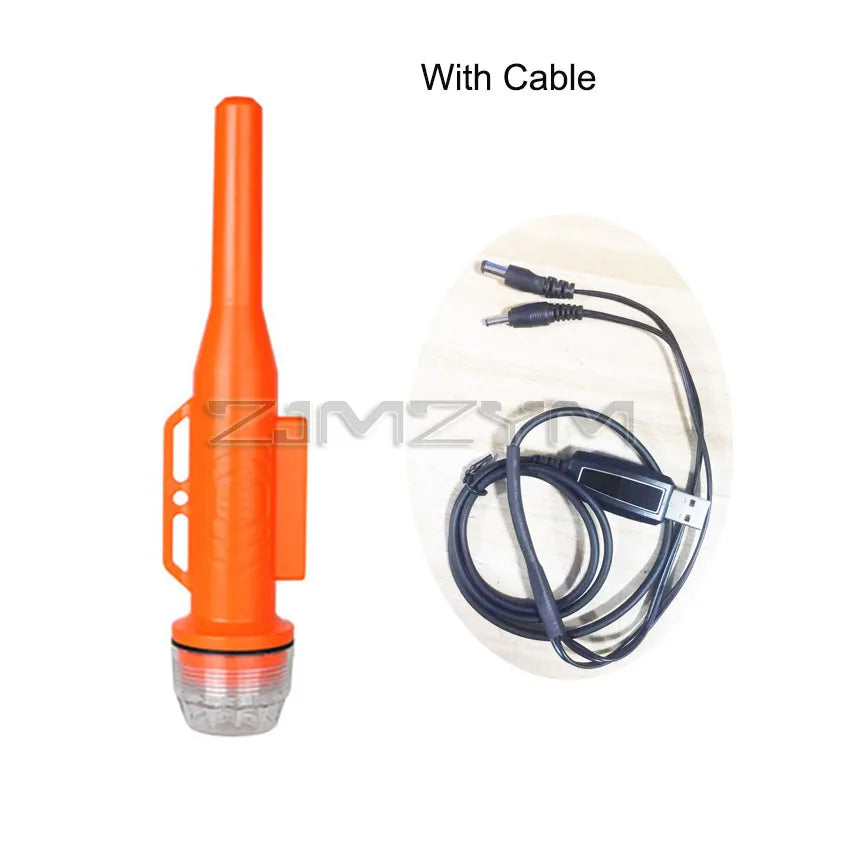

• 1 × RS-109M AIS Marine Net Tracker Core Terminal

• 1 × High-Gain Marine Tuned Antenna

• 1 × Heavy-Duty AC Charging Adapter / Dock Stand

• 1 × Quick Start Marine Configuration Instructions Manual

⚠️ Crucial Shipping & Customs Notice

• Customs Duties Disclaimer: Please note that international buyers are entirely responsible for local customs duties, clearance paperwork processing, or import taxes applied upon arrival at destination borders.

• Remote Area Delivery Surcharge: If your physical ship yard, harbor docking area, or home delivery zip code is classified as a remote shipping location by regional freight couriers, an additional remote service delivery charge of $48 USD will be required to complete transit routing.

🛒 Precision Asset Security. Built for the Open Sea.

The RS-109M Marine Net Tracker is perfect for commercial fishermen protecting expensive longline rigs, harbor operators monitoring floating structural assets, and open-ocean vessels looking for a reliable, weatherproof anti-lost tracking system.
