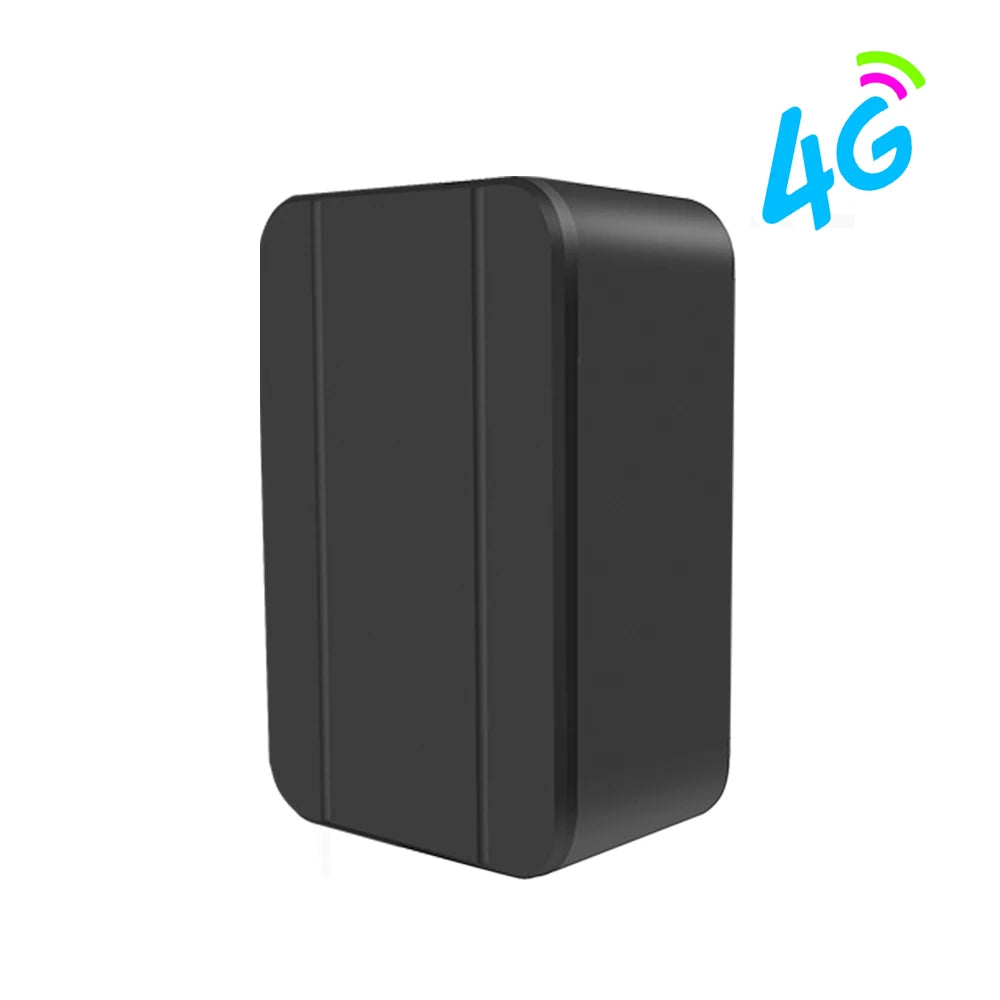

YunTrack CJ220 4G Mini Personal & Vehicle GPS Tracker

🐾 👶 🚗 The Ultra-Compact Multi-Purpose Asset & Personal Safety Guardian That Does It All

Meet the YunTrack CJ220 4G Mini GPS Tracker—a versatile, ultra-lightweight ($40\text{g}$) personal safety and asset tracking terminal engineered specifically for pets, children, elderly relatives, personal luggage, and vehicles.

Combining global 4G LTE cellular multi-band compatibility with quad-constellation satellite tracking (GPS + BDS + GLONASS + Wi-Fi + LBS), a high-capacity 1200mAh rechargeable lithium battery, and multiple power-management operational modes, this compact locator provides continuous safety and position reporting. Supported by the subscription-free YunTrack mobile app for iOS and Android, it delivers real-time monitoring directly to your smartphone.

🛰️ Quad-Constellation Positioning & Real-Time Tracking

• Multi-Mode Location Engine: Combines GPS, BeiDou (BDS), GLONASS, Wi-Fi, and LBS base station triangulation to pinpoint positions accurately both outdoors ($5\text{--}10\text{m}$ precision) and inside buildings.

• Full 4G LTE & 2G Global Network Support: Outfitted with an extensive multi-band modem array compatible with 4G LTE bands across North America, Europe, Asia, and Latin America, backed up by quad-band 2G GSM fallback.

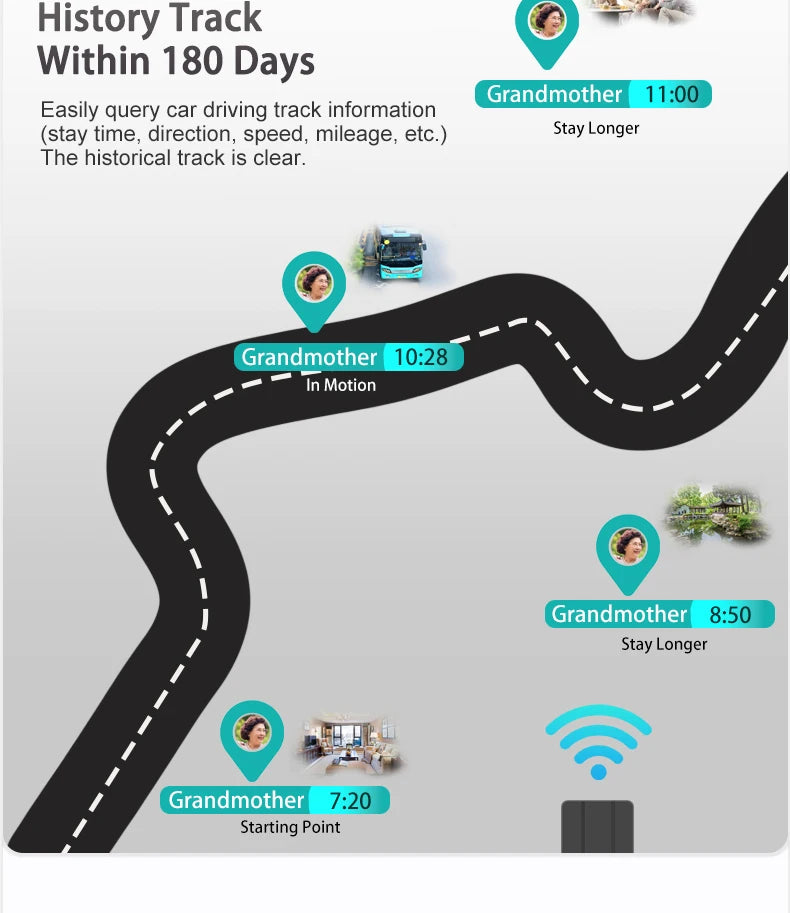

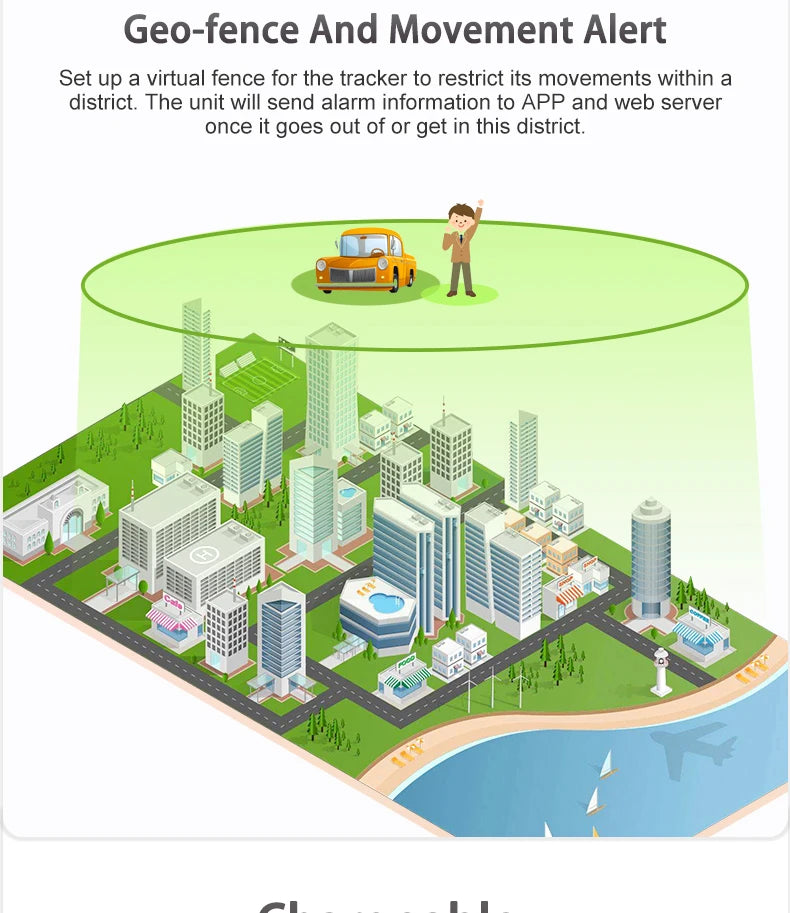

• Geo-Fencing & Historical Route Playback: Set up custom digital safety boundaries on your smartphone map to receive instant alerts if the tracker exits assigned perimeters, and review up to 60 days of movement logs.

🔋 1200mAh Rechargeable Battery & 4 Smart Power Modes

• 1200mAh High-Density Battery Core: Delivers 5 to 7 days of continuous working performance and up to 15–20 days of standby time on a single charge.

• Configurable Working Modes (Command Switchable):

  1. Instant / Fast Mode (WKMD,1,30): Real-time tracking uploading location data every 30 to 120 seconds during active use.

  2. Super Power Saving / Roll Call Mode (WKMD,2,0): Ultra-low draw mode that logs position only when manually queried ("roll call") via the app.

  3. Exercise / Motion Mode (WKMD,3,10): Uploads location data every 10 to 1440 minutes while in motion to conserve battery.

  4. Timed Upload Mode (WKMD,4,4): Fixed interval reporting that uploads position every 1 to 24 hours (default: every 4 hours).

🪶 Compact Weatherproof Housing & Multi-Alert Safety System

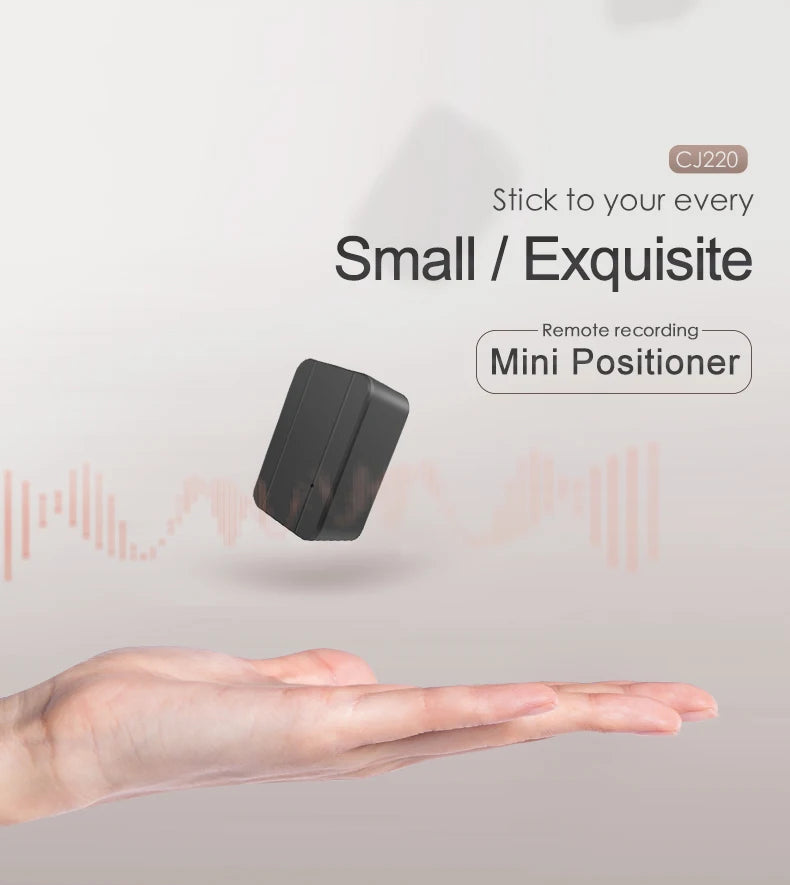

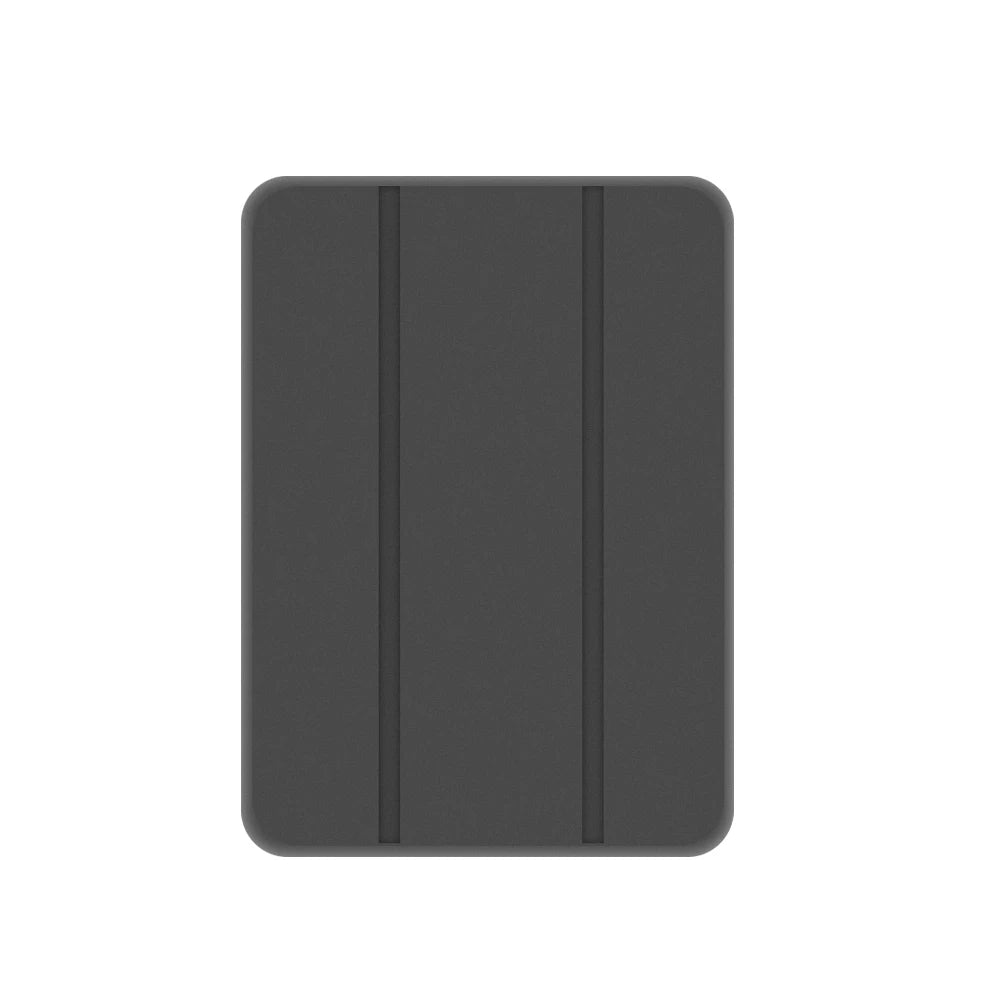

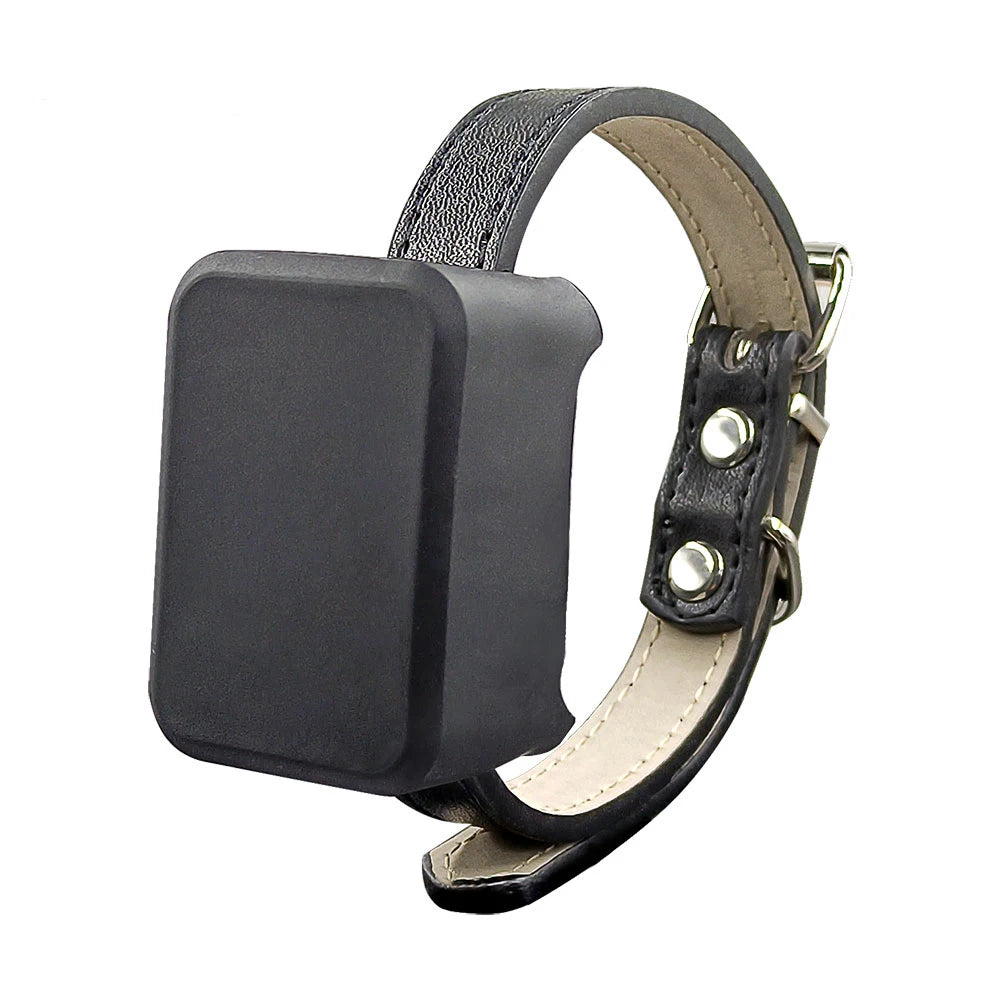

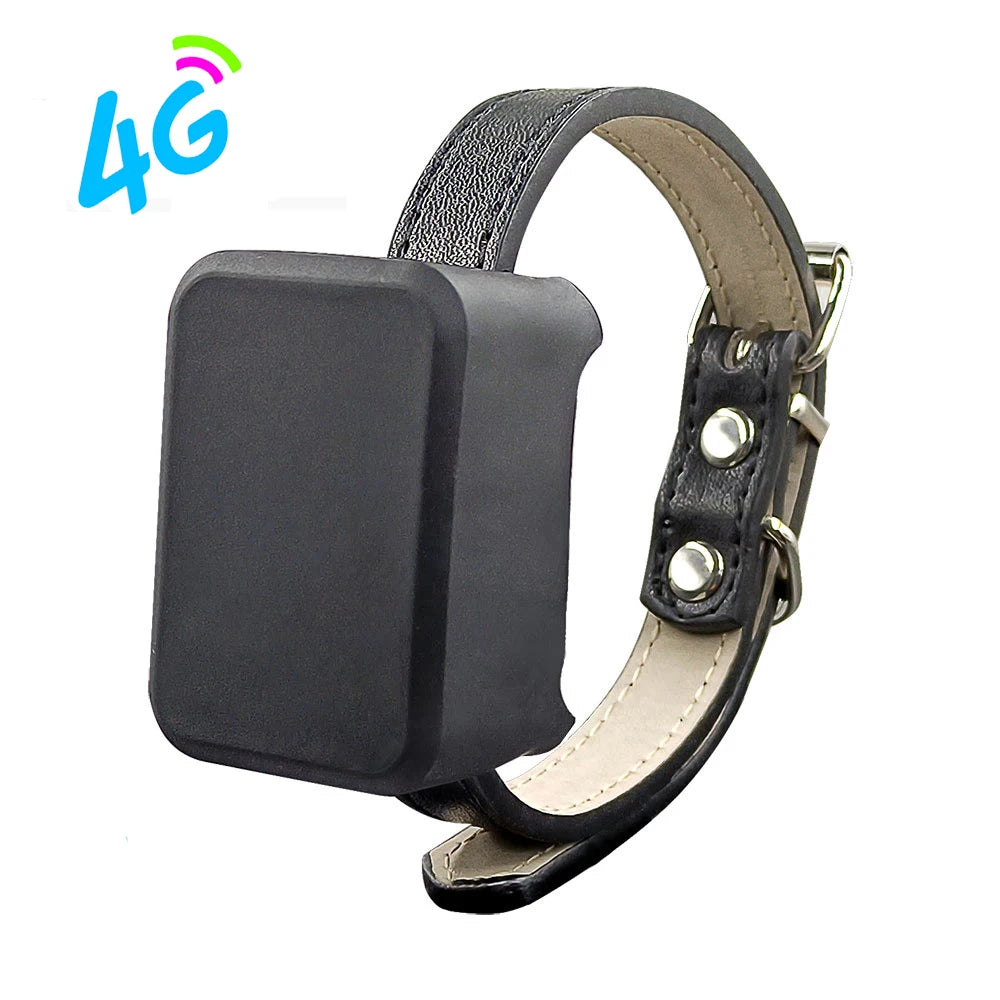

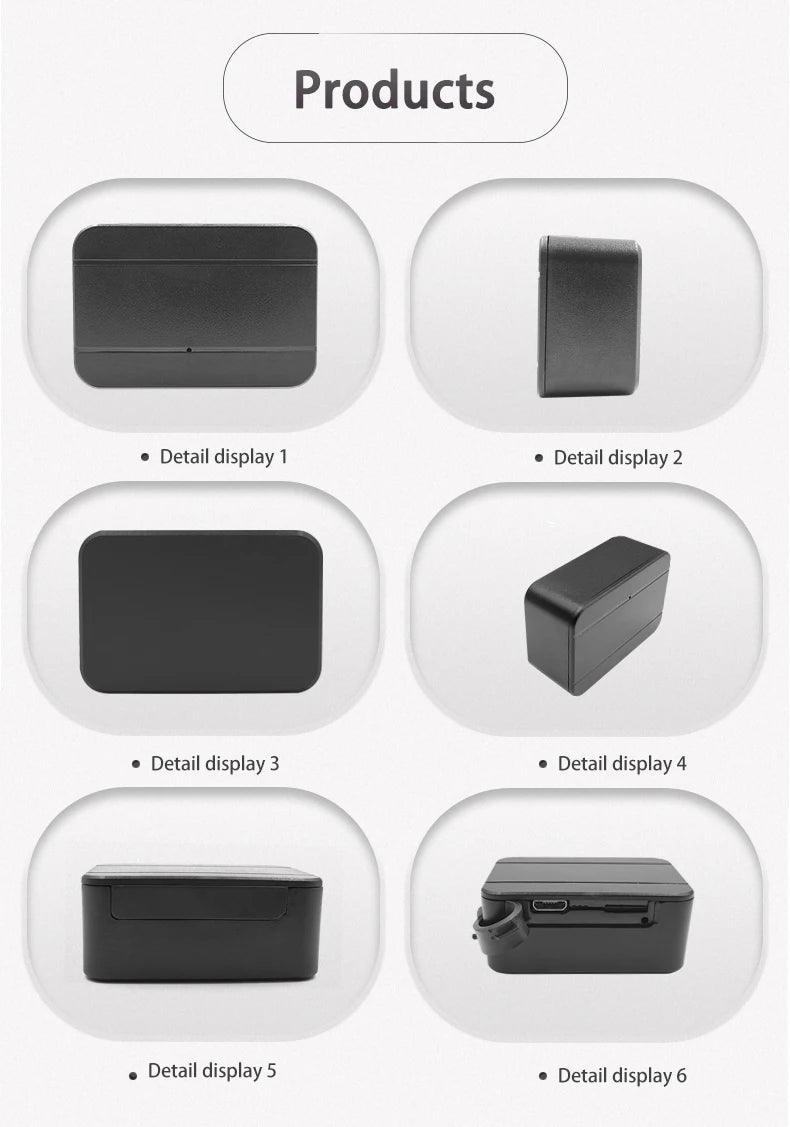

• Featherlight $40\text{g}$ Footprint: Compact dimensions ($48 \times 32 \times 20\text{ mm}$) make it easy to attach to pet collars, slip into child backpacks, or hide discreetly inside vehicles.

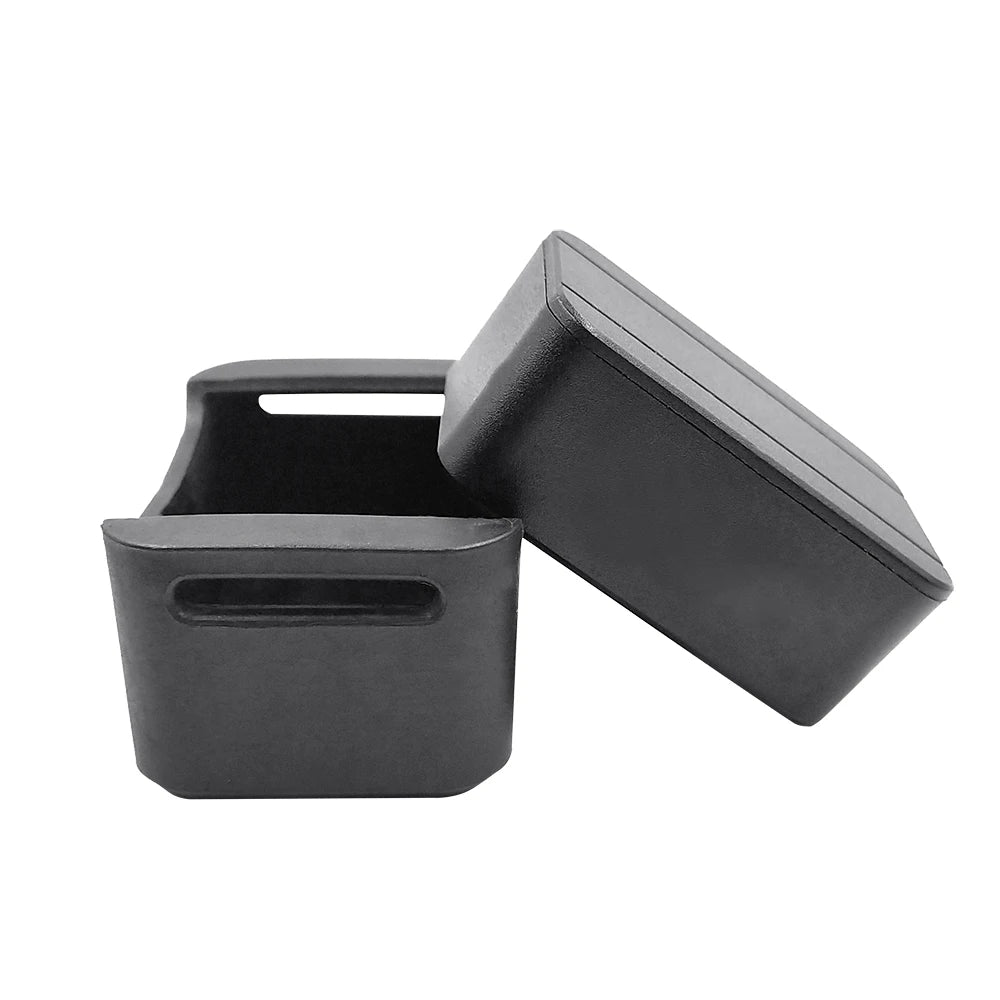

• IP64 Splash-Resistant Enclosure: Built with durable ABS housing designed to withstand daily dust, rain splashes, and outdoor wear.

• Comprehensive Safety Alarms: Push alerts for low battery warnings, vibration/movement detection, over-speed warnings, and geofence breaches.

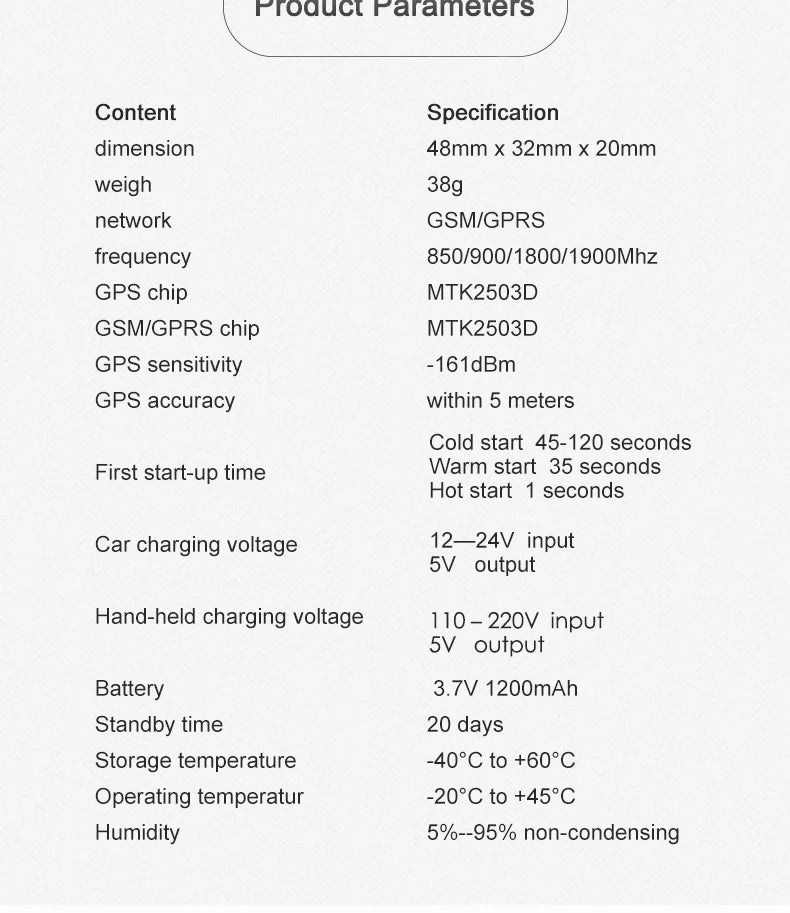

⚙️ Product Specifications

• Brand Name: YunTrack

• Model Name / Number: CJ220 / CJ220-4G

• Product Category: Mini Personal & Vehicle GPS Locator

• GPS Hardware Core: MediaTek MT2503D High-Sensitivity Module

• Location Systems: GPS + BDS + GLONASS + LBS + Wi-Fi Hybrid Positioning

• Location Accuracy: $5\text{--}10\text{ meters}$ (GPS under open sky)

• Supported 4G LTE FDD Bands: Bands 1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 13 / 18 / 19 / 20 / 25 / 26 / 28 / 66 / 34 / 38 / 39 / 40 / 41

• Supported 2G GSM Bands: 850 / 900 / 1800 / 1900 MHz

• Battery Specification: 3.7V 1200mAh Rechargeable Lithium Battery

• Battery Performance: 5–7 Days Active Work | 15–20 Days Standby Mode

• Dimensions & Net Weight: $48 \times 32 \times 20\text{ mm}$ | $40\text{ grams}$

• Enclosure Rating: IP64 Weatherproof & Dustproof

• Chassis Material: ABS Composite Polymer

• Tracking Platforms: YunTrack App (iOS / Android) + Web Tracking Portal

• Safety & Regulatory Certifications: CE, RoHS Certified

• Origin: Mainland China

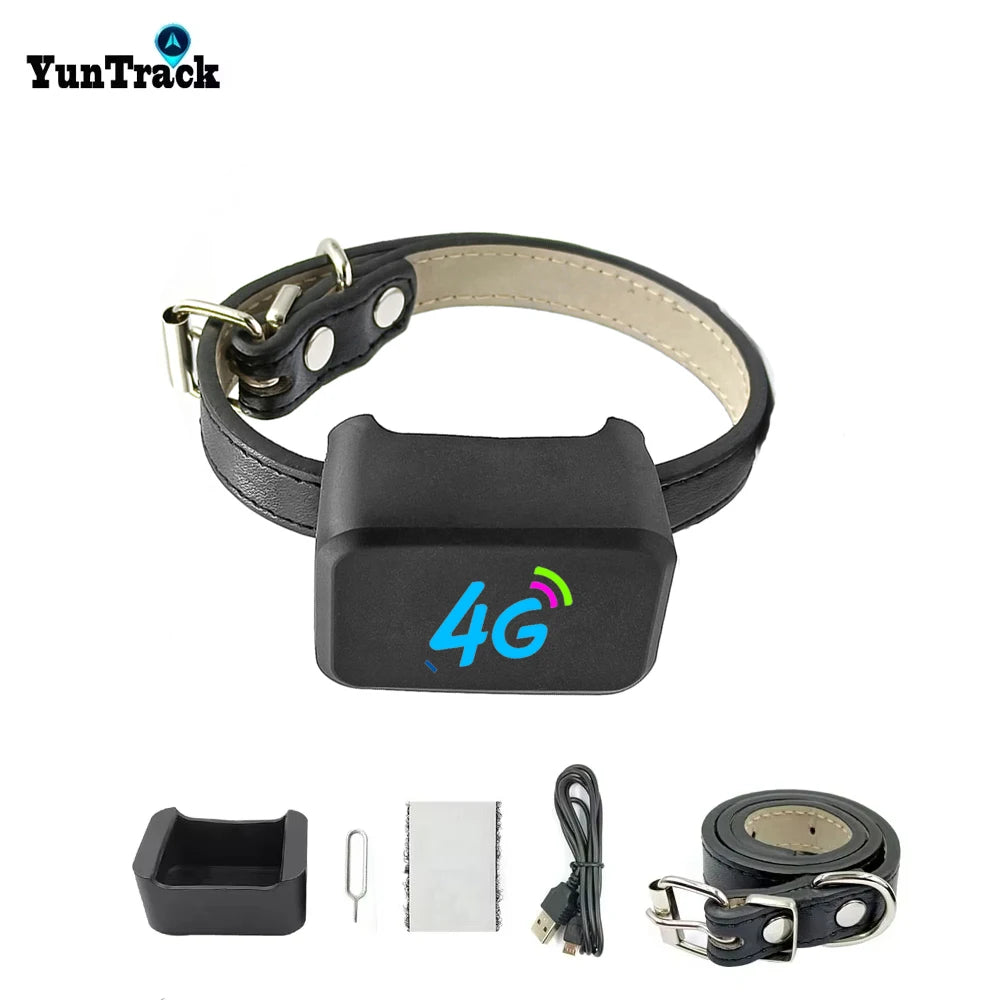

📦 What’s Included

• 1 × YunTrack CJ220 4G Mini GPS Tracker Console

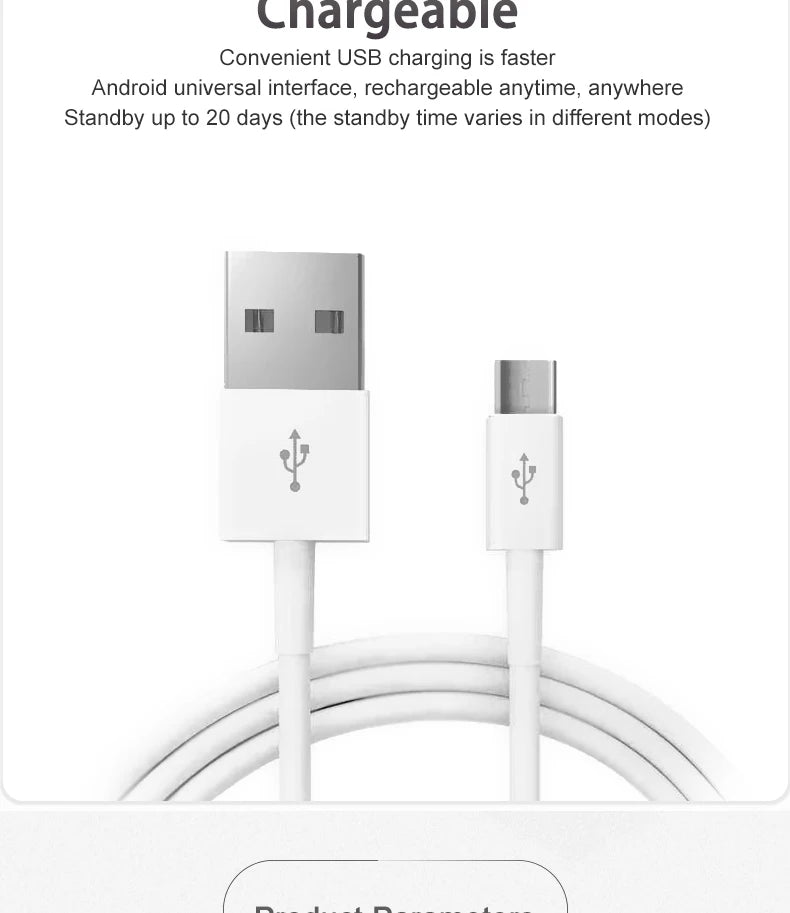

• 1 × USB Charging Cable

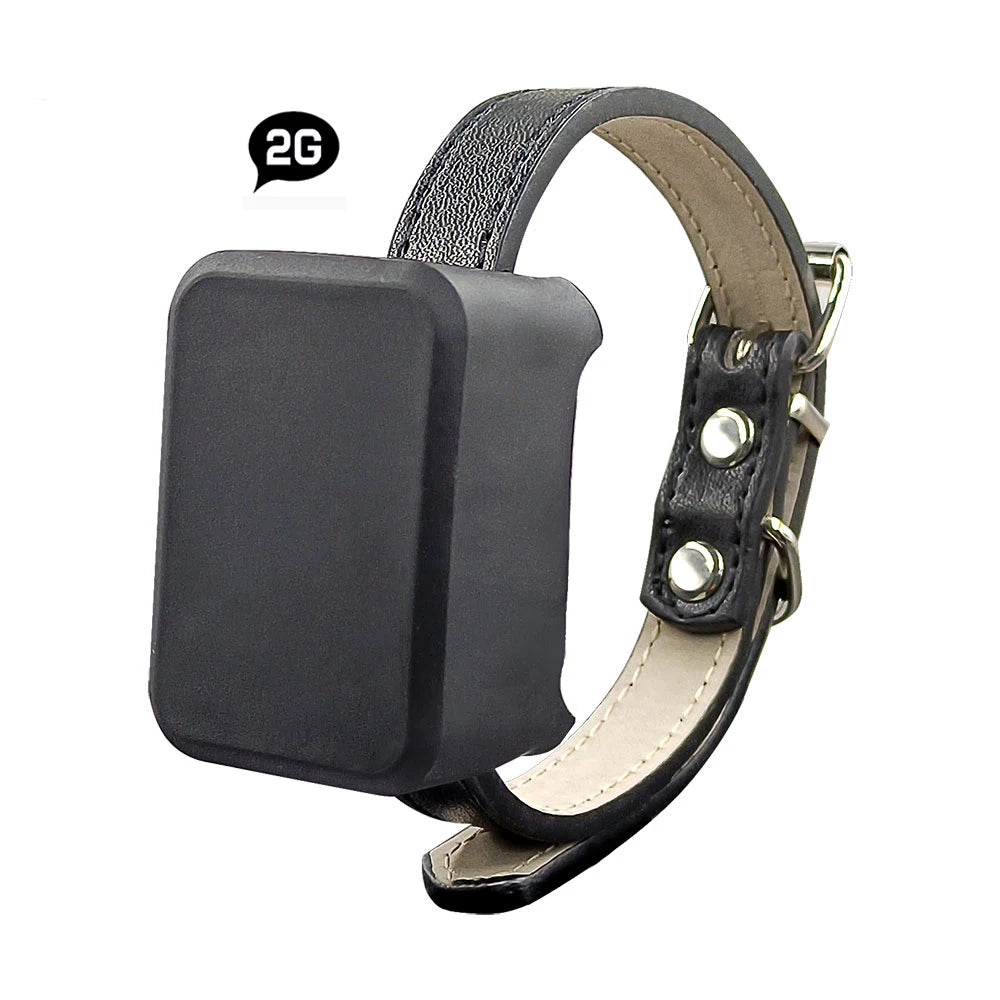

• 1 × Lanyard / Collar Attachment Harness Setup

• 1 × Quick-Start Setup & Command User Manual

🛠️ Quick-Start Setup & Operation Guide

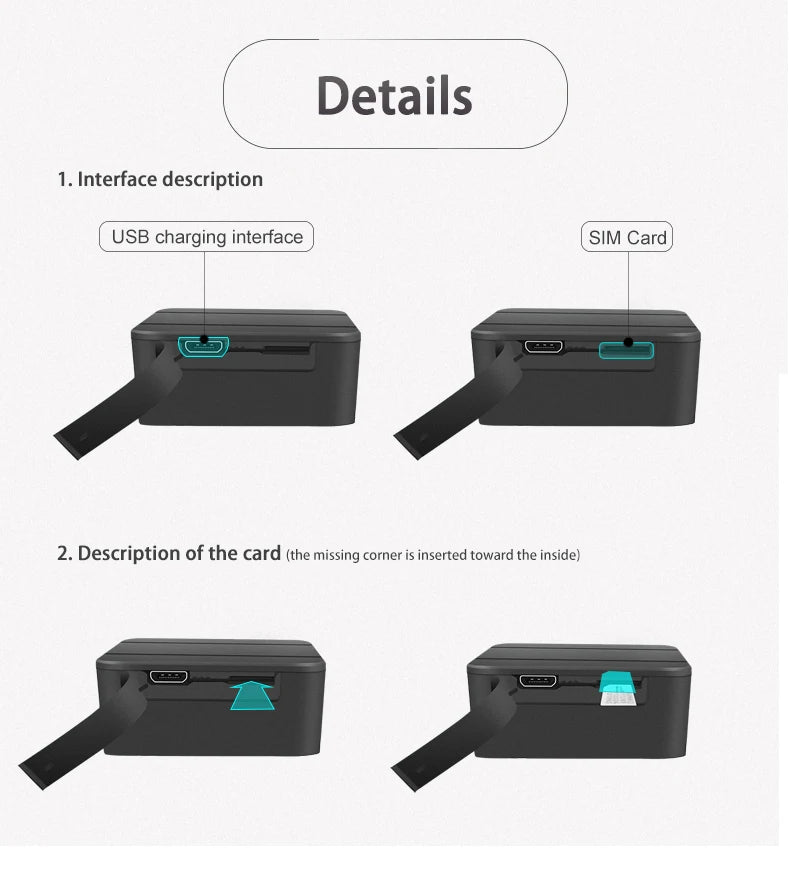

1. SIM Card & Signal Initialization

1. Ensure the CJ220 tracker is powered OFF.

2. Insert an active 4G Nano-SIM card (with voice/SMS/data plan enabled and the SIM PIN lock disabled).

3. Power on the device outdoors under an open sky for 1–2 minutes to allow the MT2503D chipset to lock onto initial satellite coordinates.

2. App Registration & Mode Selection

1. Download the YunTrack app from the Apple App Store or Google Play Store.

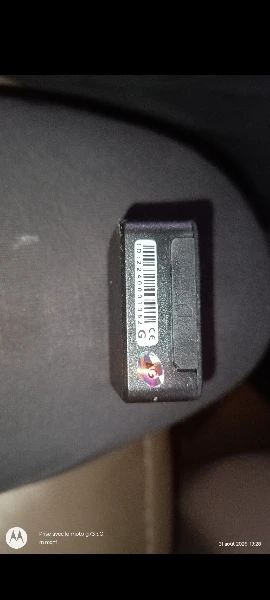

2. Register an account and pair the tracker by logging in with the device IMEI serial number printed on the chassis.

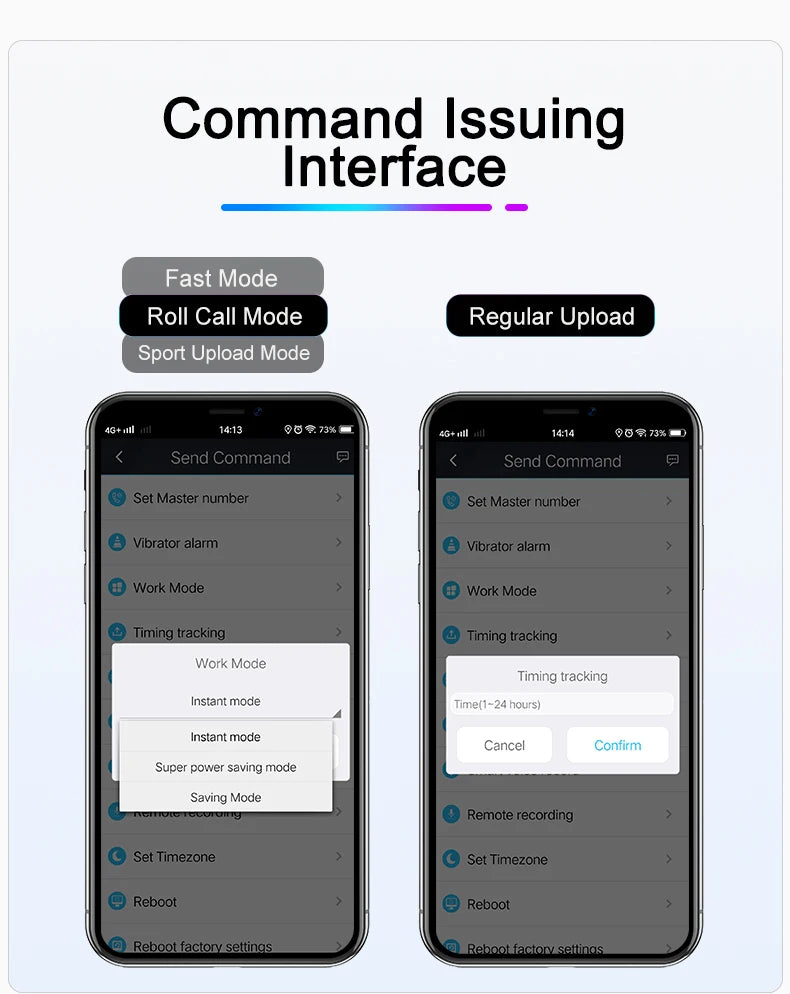

3. Select your desired operating mode (Instant, Super Power Saving, Exercise, or Timed) via app commands to match your tracking frequency requirements.
