LandStar 8 Android OS Field Surveying Suite

LandStar 8 GNSS RTK Android Field Surveying Software & HCE600 Data Collector – Professional Geospatial Data Collection Suite

🌾 📐 🏗️ The Elite High-Precision GNSS Field Workstation That Does It All

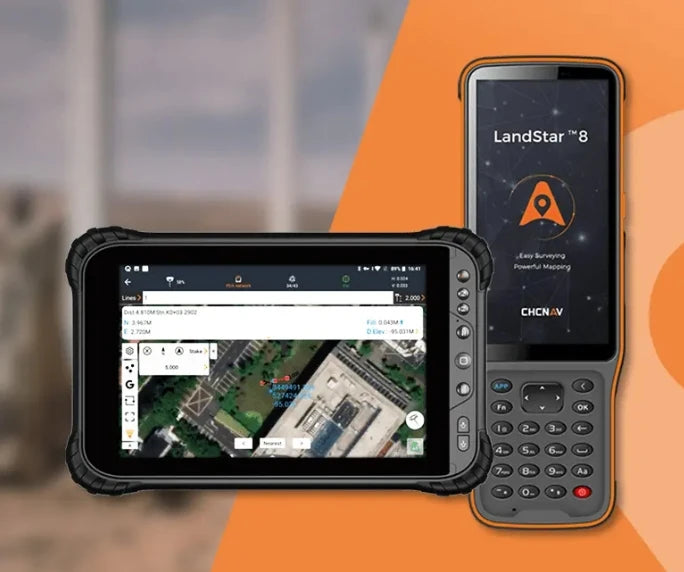

Meet the LandStar 8 Android OS Field Surveying Suite—a professional-grade geospatial data collection program paired with a heavy-duty, octacore handheld data terminal. Engineered specifically for land surveyors, civil engineers, and RTK construction teams, this system provides top-tier field productivity.

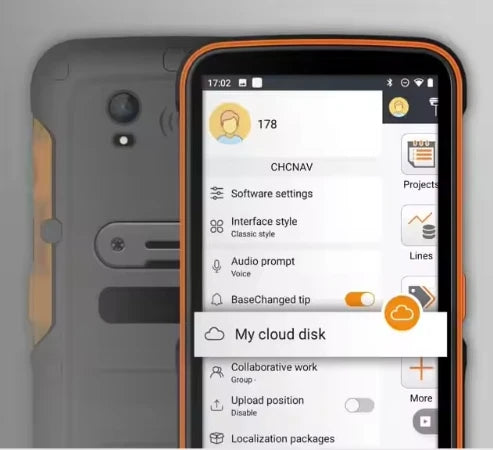

Combining advanced cloud connectivity, robust CAD map rendering, and a rugged IP67-rated alphanumeric handheld computer, it handles complex topographic mapping, highway layouts, and boundary data capture with ease. It goes far beyond entry-level logging tools to deliver a true all-in-one, high-accuracy GNSS RTK field management system right in your hands.

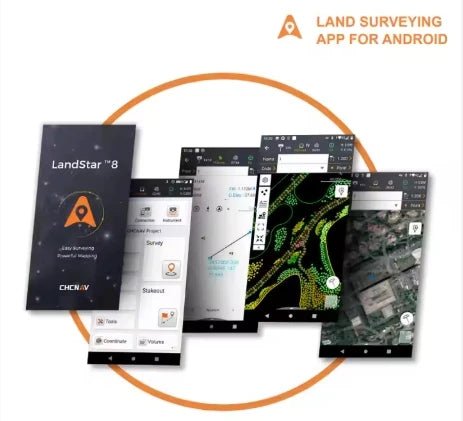

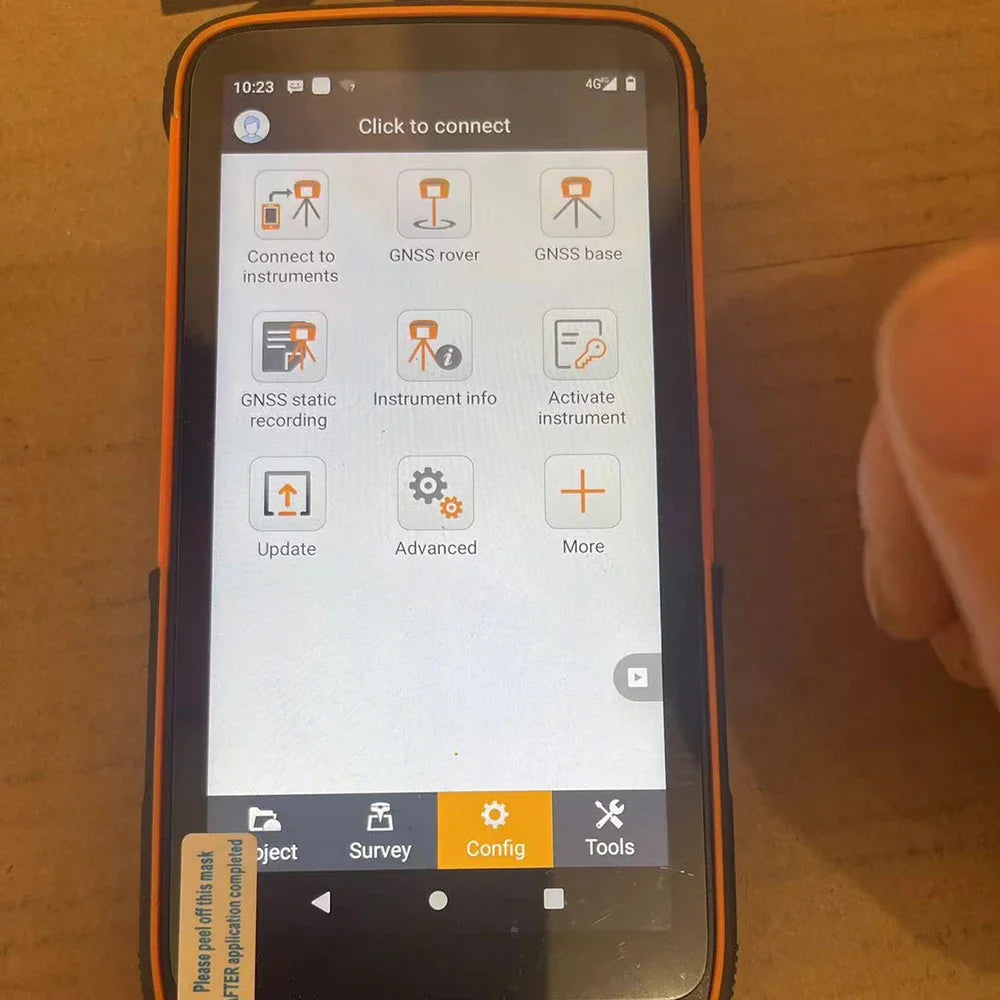

🗺️ Next-Gen LandStar 8 Surveying App & OS Infrastructure

• Advanced Core Architecture: Optimized to run seamlessly on Android 6.0.1 or higher, providing fast background processing and rapid map-refresh rates during heavy field tracking.

• Simplified Online Licensing: Utilizes a quick online software registration license model, making it easy to deploy field upgrades without physical key dongles.

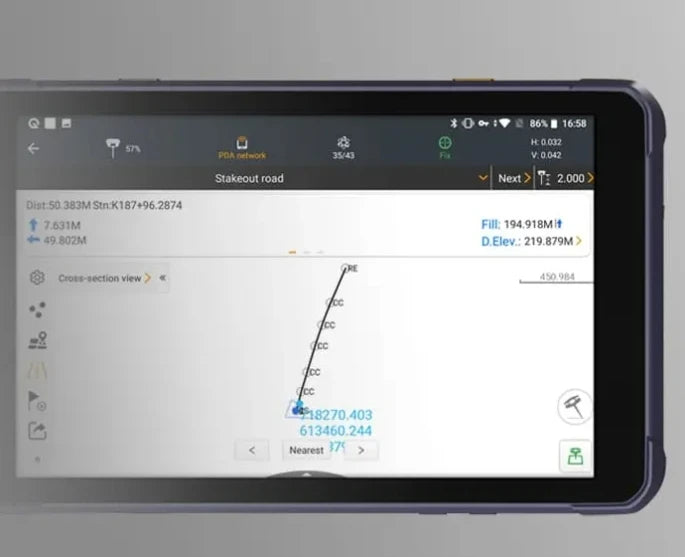

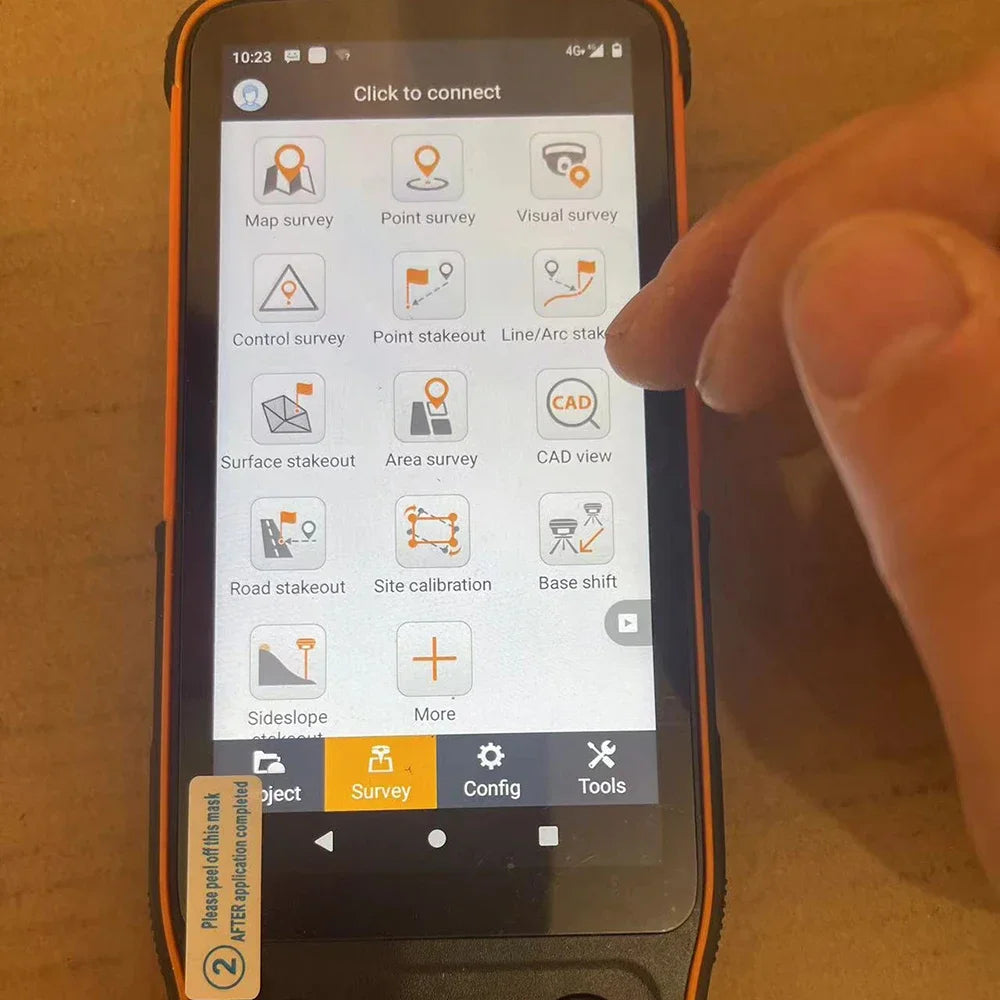

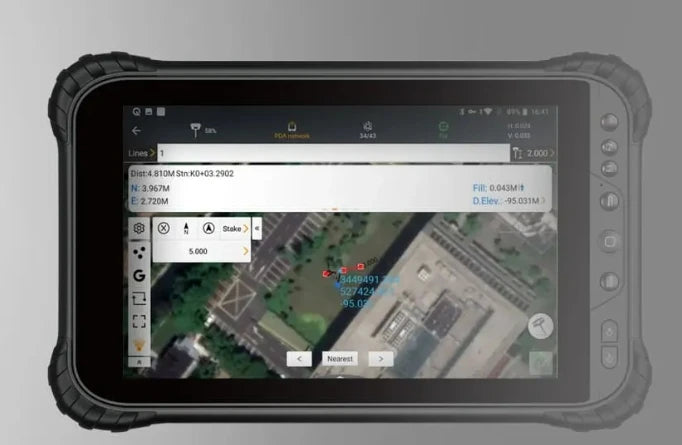

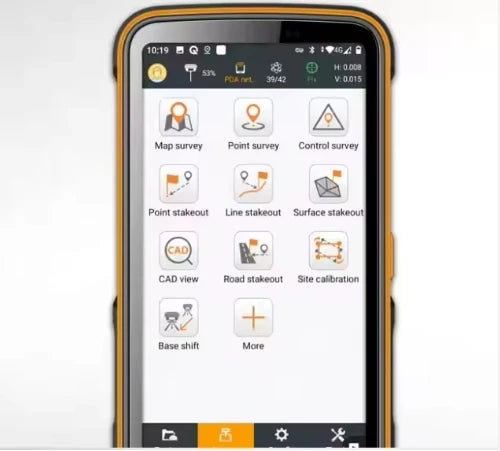

• Comprehensive Field Toolsets: Seamlessly handles diverse field tasks, including point/line stakeout, topological surveying, COGO calculations, and immediate coordinate transformation mapping.

• Comprehensive Connectivity: Features built-in Bluetooth and near-field communication (NFC) protocols for quick, tap-and-pair connections with professional CHC GNSS RTK receivers.

💻 Industrial HCE600 Handheld Data Collector Core

• High-Performance Processing Hub: Powered by a crisp Helio MTK 6762 octa-core processor clocking up to 2.0 GHz, paired with 3GB of high-speed RAM and 32GB of expandable ROM storage.

• 5.5-Inch Sun-Readable Panel: Features a bright, 5.5-inch IPS capacitive multi-touch screen ($1440 \times 720\text{ pixels}$) protected by scratch-resistant DragonTrail™ glass. The 500 cd/m² display remains perfectly readable under direct sunlight.

• Physical Alphanumeric Keyboard: Equipped with a ruggedized physical alphanumeric tactile keyboard to ensure fast, error-free data entry while wearing work gloves or operating in rainy weather.

• Global Network Modem: Outfitted with an integrated LTE FDD/TDD multi-band network modem supporting dual-frequency Wi-Fi (2.4G/5G) and cellular voice calls via a standard Nano-SIM card slot.

🔋 14-Hour Battery Stamina & Rugged IP67 Armor

• Massive 6240mAh Power Reserve: Driven by a large 6240 mAh lithium-ion battery pack that delivers up to 14 hours of continuous active field runtime on a single charge.

• IP67 Waterproof & Dustproof: Completely sealed against environmental hazards, the unit can withstand full water submersion and fine dirt ingress.

• Harsh-Climate Thermal Thresholds: Built to survive demanding outdoor sites, maintaining peak functionality in operational temperatures ranging from -30°C up to +60°C.

⚙️ Product Specifications

🌐 Software Parameters (LandStar 8)

• Application Focus: High-Precision Land Surveying / GNSS RTK Data Collection

• Operating System Requirement: Android 6.0.1 and Higher

• License Activation Mode: Online Software Registration Matrix

• Wireless Sync Capabilities: Bluetooth, NFC, and Wi-Fi

• Supported Hardware Platforms: Optimized for HCE600 Data Controllers and CHC RTK systems.

• Customization Support: OEM, ODM, and OBM Services

🛠️ Handheld Hardware Parameters (HCE600 Data Collector)

• Processor (CPU): Helio MTK 6762 Octa-Core ($2.0\text{ GHz}$)

• Internal Memory Capacity: 3 GB RAM / 32 GB ROM Flash Vault

• Operating System Platform: Android 10 Core

• Display Screen Type: 5.5" IPS LTPS Capacitive Multi-Touch Interface

• Screen Properties: $1440 \times 720\text{ Pixels}$ HD+ | 296 ppi | Brightness: 500 cd/m²

• Screen Glass Shield: DragonTrail™ Scratch-Resistant Glass

• Data & Charging Interface: USB Type-C Port with Full OTG Support

• SIM Card Configuration: Single Slot for Nano-SIM Cards

• Wireless Connections: Bluetooth V5.0 | Wi-Fi (802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w) 2.4G & 5G Modes

• Cellular Data Matrix: LTE FDD (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28AB) & LTE TDD (B34/B38/B39/B40/B41)

• Battery Specification: 6240 mAh Rechargeable Li-ion Battery

• Continuous Working Duration: Up to 14 Hours

• Physical Proportions: $224\text{ mm} \times 80\text{ mm} \times 15.4\text{ mm}$ ($8.8\text{ in} \times 3.1\text{ in} \times 0.6\text{ in}$)

• Total Weight: 345 g (12.2 oz) inclusive of internal power cell

• Environmental Sealing Rating: Certified IP67 Weatherproof

• Operational Climate Window: Working: -30°C to +60°C | Storage: -40°C to +65°C

• Relative Humidity Support: 5% ~ 95% (Non-condensing)

• Origin: Jiangxi, Mainland China

📦 What’s Included

• 1 × HCE600 Rugged Android GPS Handheld Data Collector Console

• 1 × LandStar 8 Field Surveying Data Collection Software License

• 1 × High-Speed USB Type-C Data-Sync & Charging Interface Cable

• 1 × Pre-Installed Heavy-Duty Li-ion 6240mAh Battery Module

⚠️ Crucial Corporate Ordering Notice

📞 Before Placing an Order: To ensure seamless hardware compatibility, verify localized coordinate network integrations, or confirm bulk shipping rates, please contact our technical customer service representatives directly!

• Direct Communication Channel: WhatsApp +86 18133598226

🛒 Professional Surveying Accuracy. Built for Demanding Landscapes.

The LandStar 8 Surveying Suite and HCE600 Collector are ideal for civil construction teams staking out property lines, infrastructure crews logging highway alignments, and geodetic engineers demanding zero-drift RTK accuracy.
