Winkcron V45 4G Smart Touch GPS Tracking Pendant

Winkcron V45 (RF-45 / RF-V45) 4G Smart Touch GPS Tracking Pendant – IP67 Waterproof, SOS Alarm, HD Camera & Health Tracker

👵 👴 👶 The Comprehensive Personal Safety Guardian That Does It All

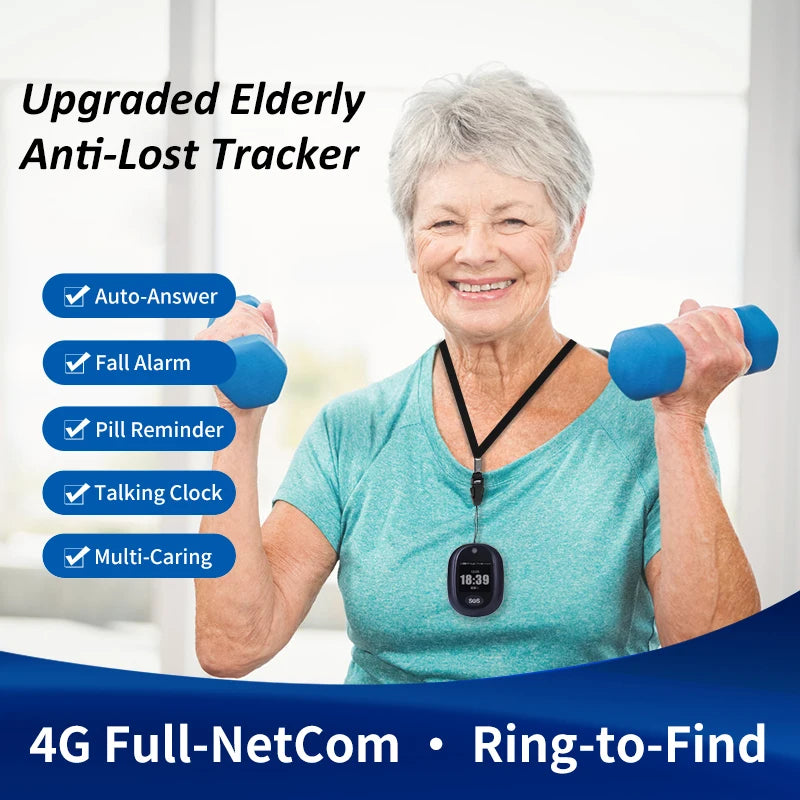

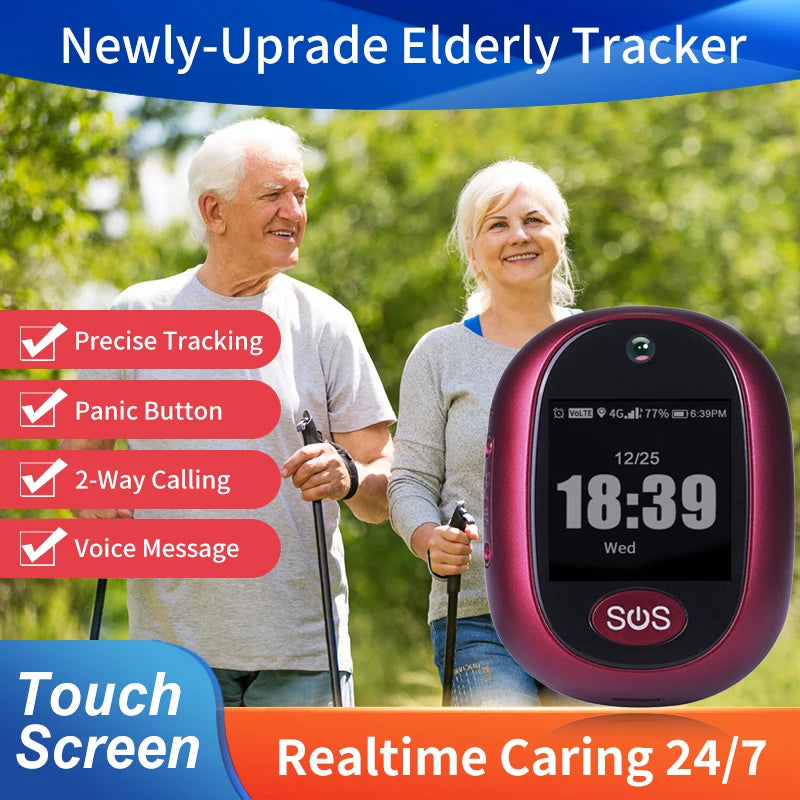

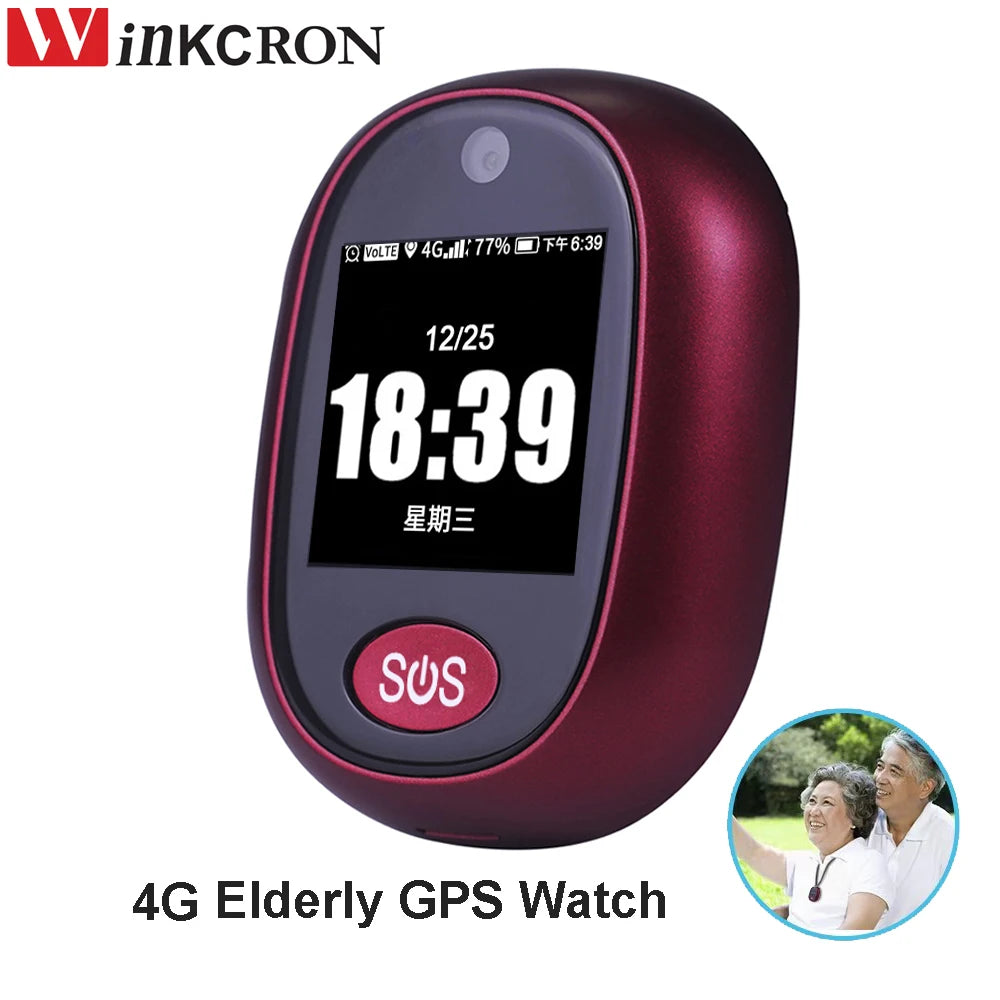

Meet the Winkcron V45 (RF-45 / RF-V45) 4G Smart Touch GPS Tracking Pendant—a feature-packed wearable safety terminal engineered specifically for seniors, children, and family caregivers who need real-time location tracking, instant emergency response, and daily health management tools.

Combining multi-network 4G LTE/2G connectivity with real-time triple positioning (GPS + Wi-Fi + LBS), a 1.3-inch HD color touchscreen, an emergency SOS button, a high-pixel camera, and health features like pill reminders and step counting, this IP67 waterproof pendant keeps loved ones safe and connected. Supported by web platforms, mobile apps, and SMS tracking, it delivers total peace of mind directly to your smartphone.

🚨 One-Click Emergency SOS, HD Camera & Two-Way Calling

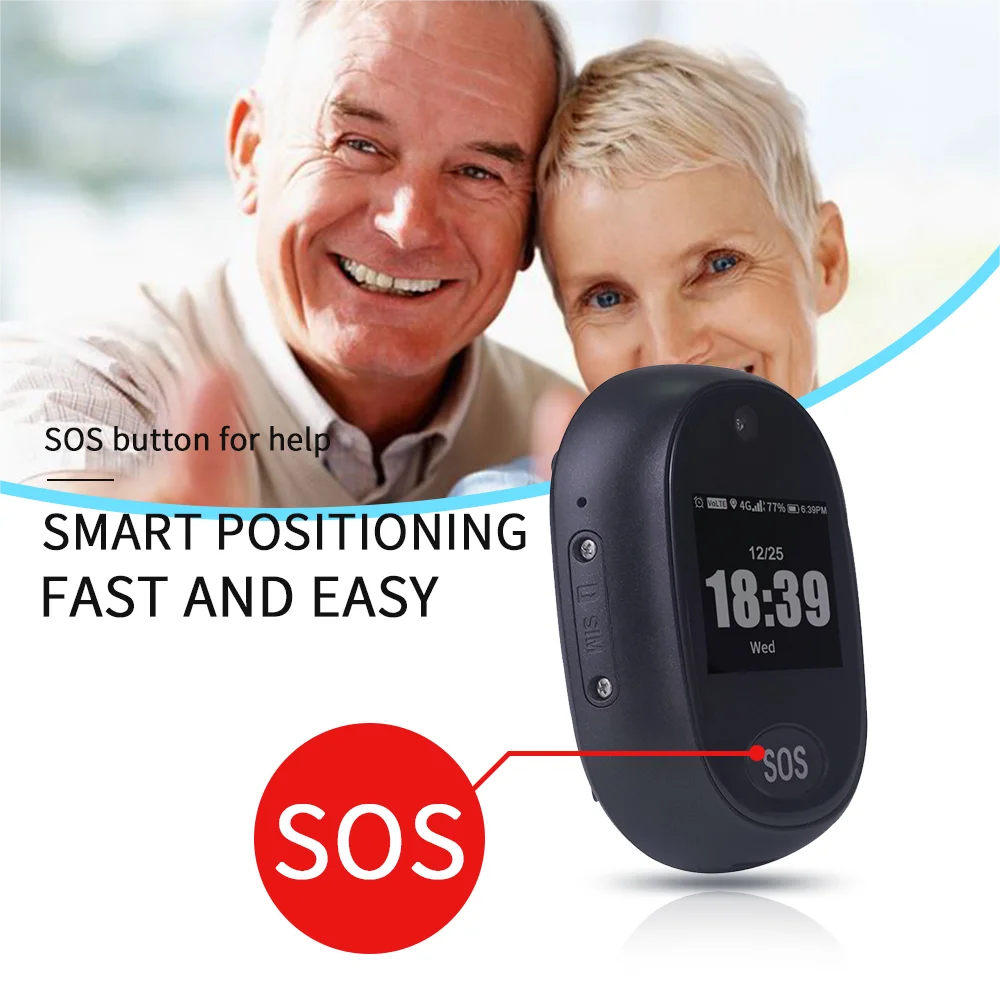

• One-Touch SOS Emergency Alarm: Long-press the SOS button for 5 seconds to instantly trigger an emergency sequence, auto-dialing pre-set contacts and sending real-time position alerts.

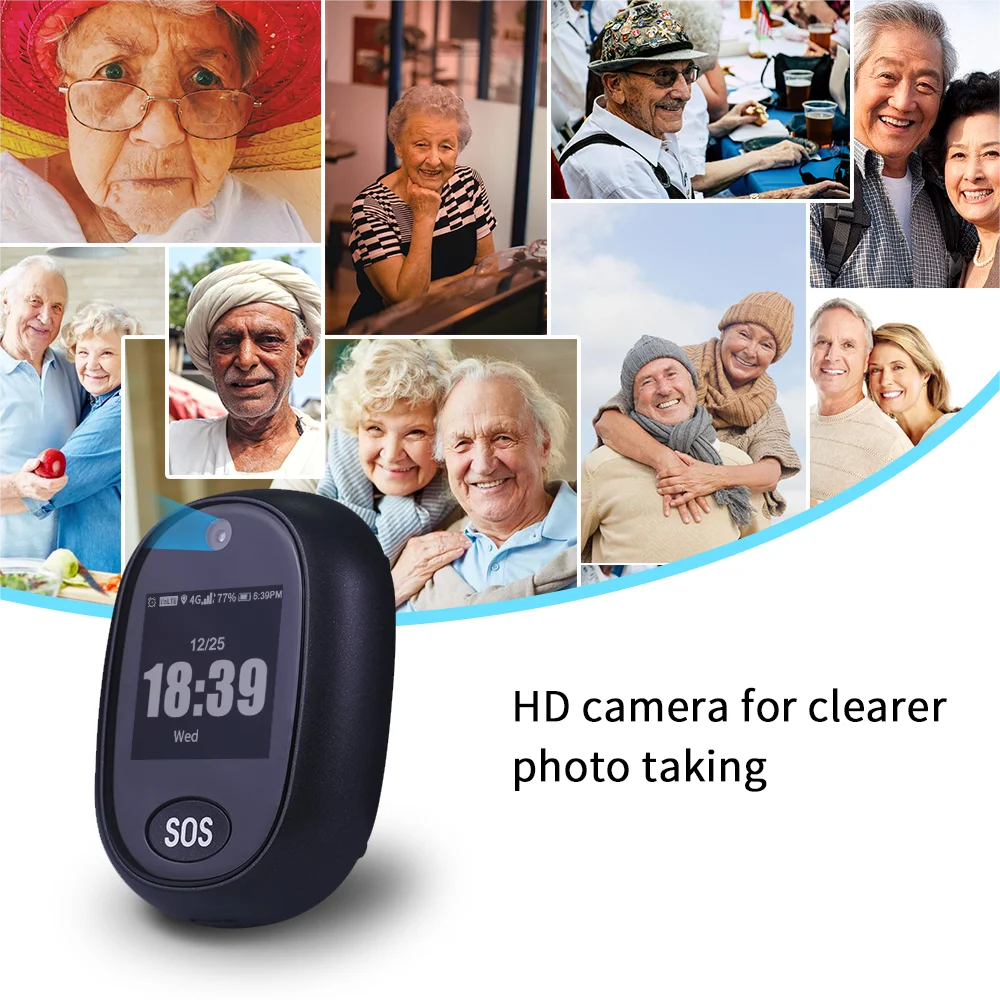

• High-Pixel Camera & Auto-Photo Capture: Integrated camera supports photo taking directly from the device or remote photo requests via the mobile app to visually verify surroundings.

• Two-Way Audio & Auto-Answer: Enjoy crystal-clear two-way voice communication with an auto-answer option for approved family numbers.

• Audible Talking Clock & Ringtone Locator: Talking clock reads the current time aloud for visually impaired wearers, while a remote ringtone finder helps locate misplaced pendants around the house.

🛰️ Triple Positioning Matrix (GPS + Wi-Fi + LBS)

• Real-Time Outdoor GPS Accuracy: Uses an ultra-sensitive 22-channel satellite receiver to pinpoint outdoor location coordinates with an accuracy of 5 to 15 meters under an open sky.

• Indoor Wi-Fi & LBS Fallbacks: Automatically switches to Wi-Fi location tracking (15–100m accuracy) or cellular tower triangulation (100–1000m accuracy) when indoors to maintain location visibility.

• Geo-Fencing & Historical Route Playback: Set custom digital safety zones on your mobile map to receive instant push alerts when the wearer enters or leaves, and review complete historical movement paths.

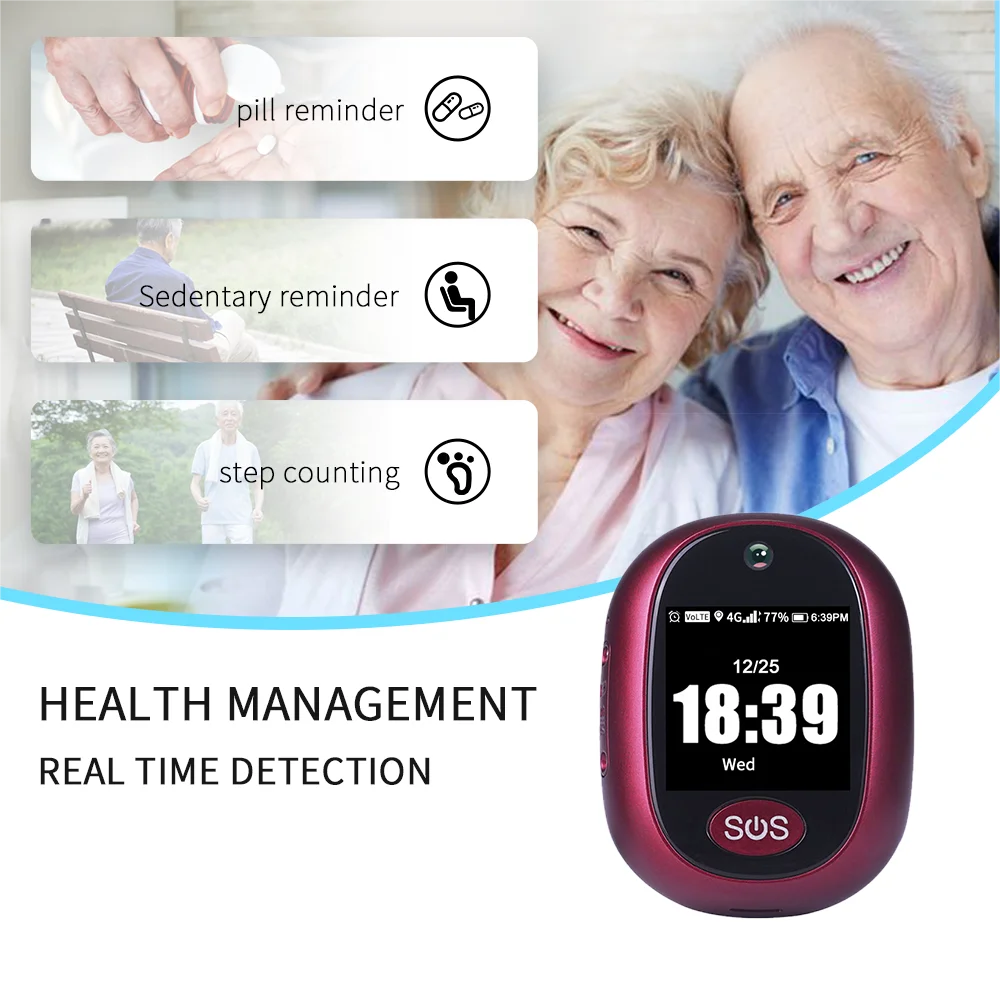

🩺 Senior Health Management & Fall Detection

• Custom Pill & Sedentary Reminders: Schedule daily medication alarms and active movement prompts to keep wearers on track with care regimens.

• Automated Fall Detection Alarm: Internal motion sensors automatically detect sudden falls or severe impacts, immediately pushing emergency notifications to caregivers.

• Daily Activity Step Counting: Onboard pedometer records daily walking steps and activity metrics to encourage healthy mobility.

🔋 Ultra-Lightweight $41\text{g}$ Design, IP67 Waterproofing & Power Efficiency

• Featherlight $41\text{g}$ Form Factor: Compact body ($59 \times 45.3 \times 16\text{ mm}$) designed to be worn effortlessly around the neck as a pendant or carried in a pocket.

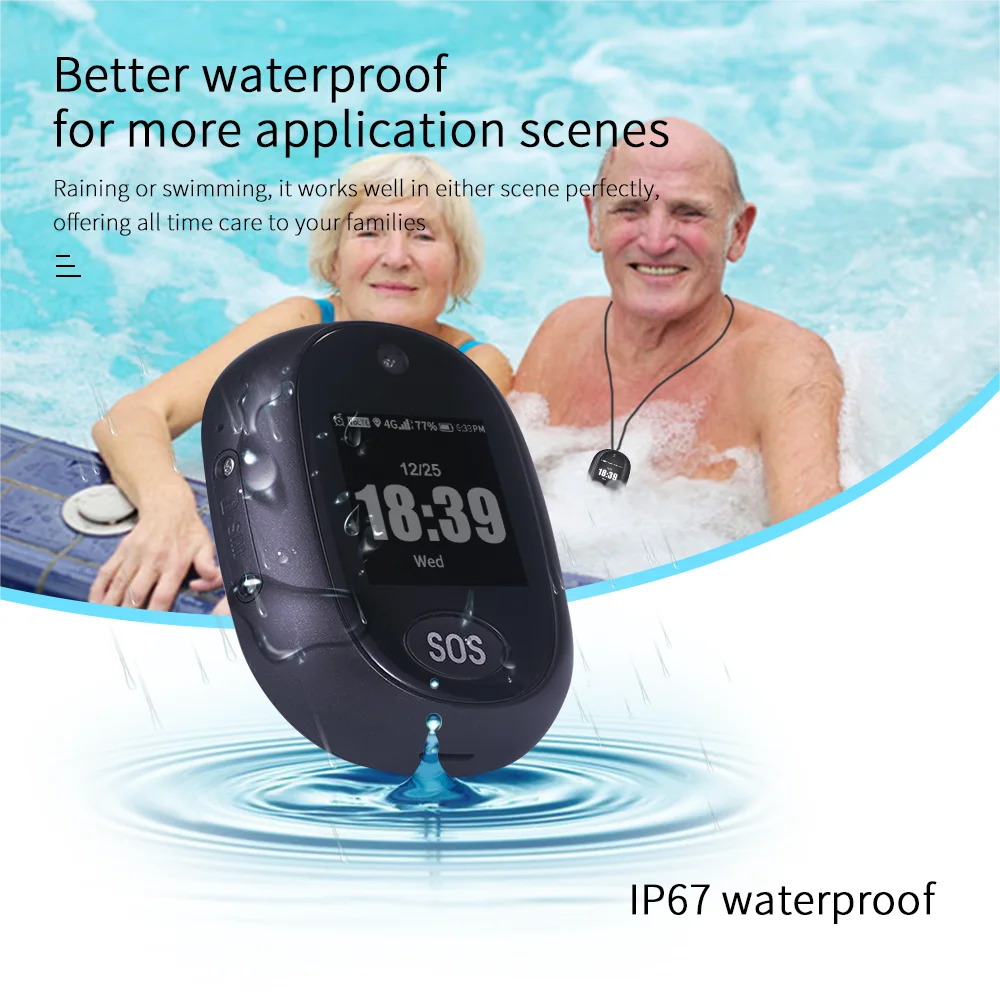

• IP67 All-Weather Waterproofing: Fully sealed composite housing protects against heavy rain splashes, shower exposure, and handwashing.

• Magnetic Rapid Refueling: Magnetic charging interface allows effortless cable snaps without requiring precise vision or dexterity. Delivers 20 to 29 hours of active operating time.

⚙️ Product Specifications

• Brand Name: Winkcron / ReachFar

• Model Designation: V45 (RF-45 / RF-V45)

• Product Category: Touchscreen 4G GPS Personal Tracking Pendant

• Display Interface: 1.3-Inch LCD HD Color Touchscreen ($240 \times 240\text{ pdi}$)

• Network Infrastructure: 4G LTE Cat4 + 3G WCDMA + 2G GSM Networks

• Supported Network Frequency Bands:

  • 4G FDD Bands: Band 1 / 2 / 3 / 5 / 7 / 8

  • 4G TDD Bands: Band 38 / 39 / 40 / 41

  • 2G GSM Bands: Band 2 / 3 / 5 / 8

• Positioning Array: GPS + AGPS + Wi-Fi + LBS Hybrid Triangulation

• Battery Runtime & Life: 600mAh Rechargeable Lithium Battery (20 to 29 Hours Operating Time)

• Power Supply Voltage: DC 5V Charging Port

• Waterproof Level: Certified IP67 All-Weather Waterproof

• Dimensions & Net Weight: $59 \times 45.3 \times 16\text{ mm}$ | $41\text{ grams}$ net weight

• Color Options: Black / Red

• Chassis Material Composition: High-Impact Durable Plastic

• Safety & Regulatory Certifications: CE, FCC, RoHS Certified

• Origin: Mainland China

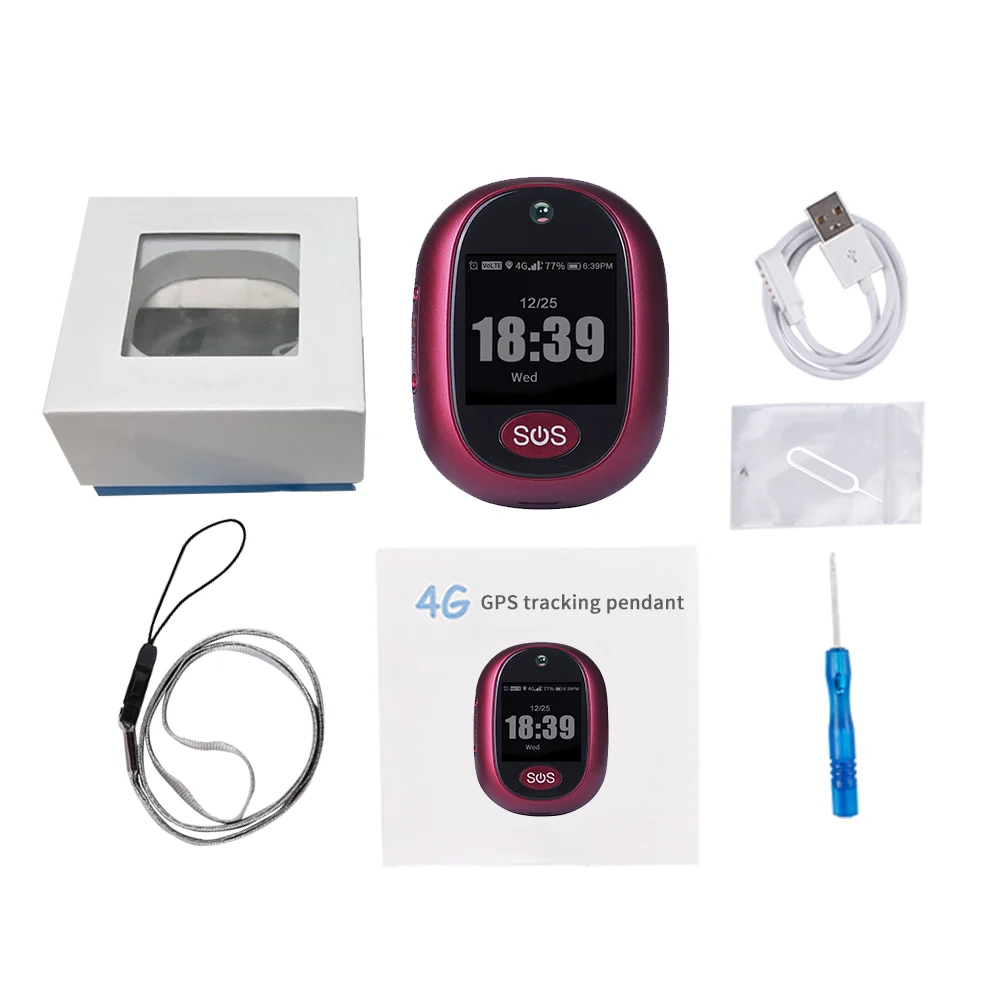

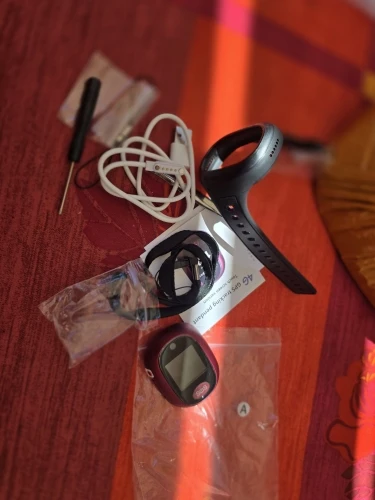

📦 What’s Included

• 1 × Winkcron V45 4G Touchscreen GPS Tracker Pendant Console

• 1 × Wearable Lanyard

• 1 × Magnetic USB Interface Charging Cable

• 1 × SIM Ejector Tool & Screwdriver Set

• 1 × Comprehensive Quick-Start Setup & User Manual

🛠️ Quick-Start Operation & Setup Guide

1. SIM Card & Signal Initialization

1. Ensure the V45 pendant is powered OFF.

2. Insert an active 4G Nano-SIM card (with active data plan, voice calling enabled, and SIM PIN lock removed) into the SIM slot.

3. Power on the pendant outdoors under an open sky for 30–60 seconds to allow the satellite module to acquire an initial GPS lock.

2. App & Web Platform Pairing

1. Download the official companion tracking application on your iOS or Android smartphone.

2. Log in using the unique IMEI serial number printed on the back of the device.

3. Configure your emergency SOS contacts, geo-fence safe zones, fall alarm sensitivities, and custom pill reminders directly in the app settings.

🛒 Featherlight Personal Protection. 24/7 Location, Health & Emergency Safety.

The Winkcron V45 4G Smart Touch GPS Tracking Pendant is the ideal wearable safety solution for families seeking instant emergency alerts, elderly individuals needing one-click SOS assistance, and caregivers managing daily health metrics.
